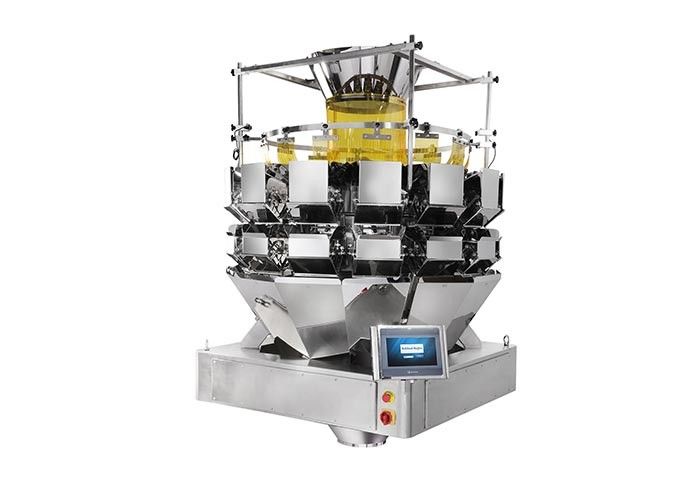

Stainless Steel MCU IP65 Fruit Multihead Weigher

Stainless Steel MCU IP65 Fruit Multihead Weigher

    • Stainless Steel MCU IP65 Fruit Multihead Weigher
    • Stainless Steel MCU IP65 Fruit Multihead Weigher
    • Stainless Steel MCU IP65 Fruit Multihead Weigher
  • Stainless Steel MCU IP65 Fruit Multihead Weigher

    Product Details:

    Place of Origin: Guangdong Zhongshan China
    Brand Name: TOUPACK
    Certification: CE
    Model Number: TY-A-M14-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Pollywood case
    Delivery Time: 10-25 working days
    Payment Terms: T/T, L/C
    Supply Ability: 100set per month
    Contact Now
    Detailed Product Description
    Applicable:: Light Or Bulky Products Material:: SUS 304 Stainless Steel
    Max. Weighing (one Hopper):: 100-5000g Control System:: MCU / PLC
    HMI:: 7'' / 10'' Color Touch Screen Power Supply:: AC220V/110V ±10% 50HZ/60HZ, 2KW
    High Light:

    IP65 Fruit Multihead Weigher

    ,

    MCU Fruit Multihead Weigher

    ,

    Stainless Steel Multihead Weigher

    Vegetable Salad And Fruit Salad Multihead Weigher With Special Design

    1. Application:

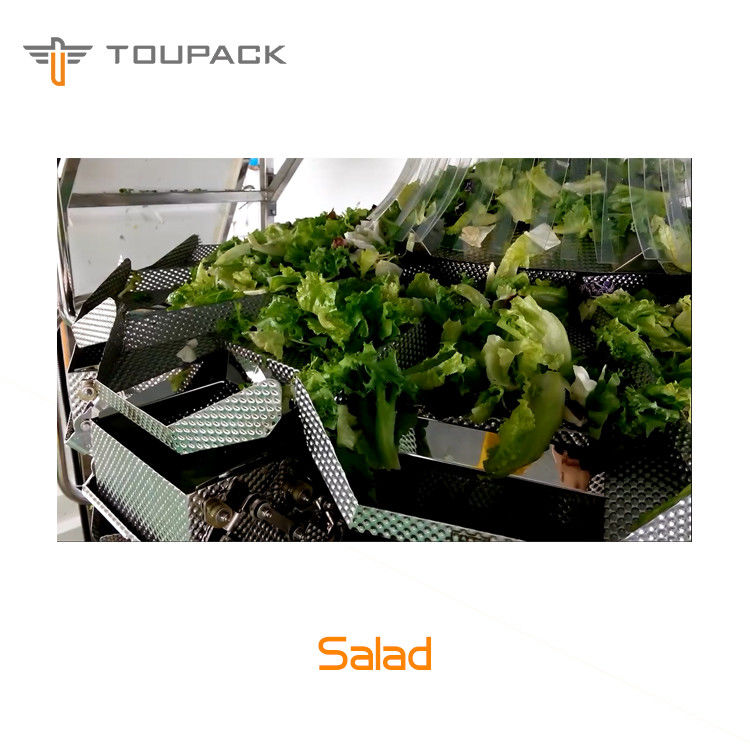

    Specially design for weighing salad, vegetable.

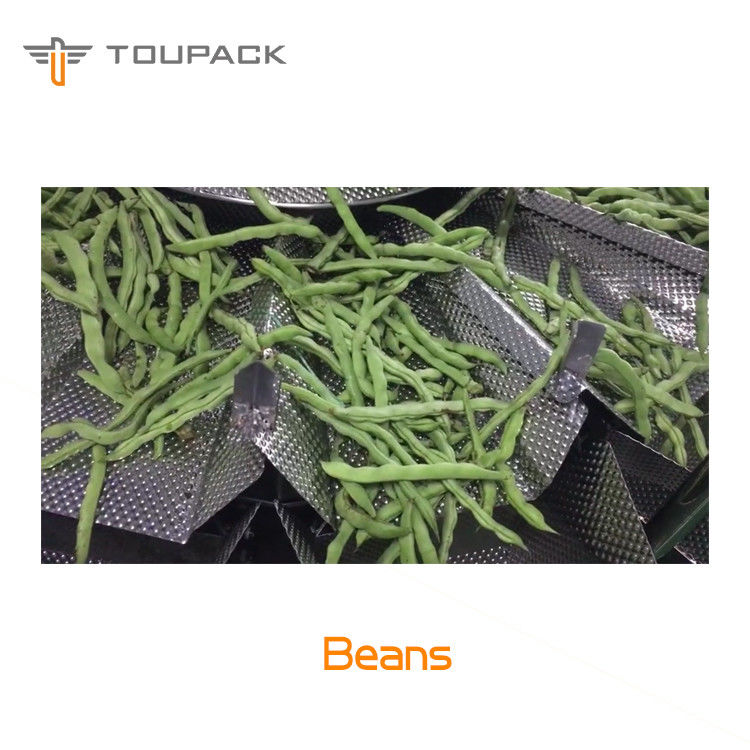

    Suitable for quantitative weighing slice, strip, and fluffy material such as: cut salads, cut piece fruits, soybean, sticky products, QQ candy, metal parts, long piece products and so on.




    2. Functional:

    (1). Select the best combination immediately from diversified weight combination through computer with perfect combination of high precision and high speed.

    (2). Special revolving vibration is better for scattering material.

    (3). High precision data-type weighing sensor realizes precise weighing.

    (4). It can be finely regulated the opening & closing speed of hopper door according to the features of items to be weighed, and prevent crushing and blocking of material.

    (5). Dimple stainless panel can help to convey and avoid damaging the product.

    (6). IP65 grade water-proof &dust-proof design. It's clear and sanitary with all stainless still parts.

    (7). Displaying every vibration for working performance monitor.

    (8). Presetting 99 sets of parameter for programming.

    (9). Multilanguage to choose: Chinese, English, Spanish, Korea, German, French and Arabic etc.



    Specifications:



    ModelTY-A-M14-3;TY-A-P14-3
    Max. Weighing (one hopper)100-5000g
    Accuracyx (0.5)
    Min. Scale Interval0.1g
    Max. Speed60 WPM
    Hopper Volume5.0L
    Control SystemMCU / PLC
    HMI7’’ / 10’’ color touch screen
    Power SupplyAC220V/110V ±10% 50HZ/60HZ, 2KW
    Packing Dimension

    Machine: 1,530(L)*1,530(W)*1,658(H)mm
    Spare parts: 1,480(L)*1,100(W)*1,238(H)mm

    Package weight

    Machine: 600kg
    Spare parts: 330kg


    Stainless Steel MCU IP65 Fruit Multihead Weigher 0

    Stainless Steel MCU IP65 Fruit Multihead Weigher 1
    Stainless Steel MCU IP65 Fruit Multihead Weigher 2
    Stainless Steel MCU IP65 Fruit Multihead Weigher 3


    Stainless Steel MCU IP65 Fruit Multihead Weigher 4Stainless Steel MCU IP65 Fruit Multihead Weigher 5
    To meet the food packing industrial development, we study and produce the advance standard food packing equipments, such as computerized multihead weigher, material conveyor, vibration feeder, take away conveyor, platform, check weigher, metal detector and so on.

    We will service all customers with high quality products, best after-sales, and reasonable prices.If any of the items listed in the catalogue meets your interest, pleasedo not hesitate to ask us for quotations and offers, which will receive our careful attention, and we assure you of our close cooperation at all times.
