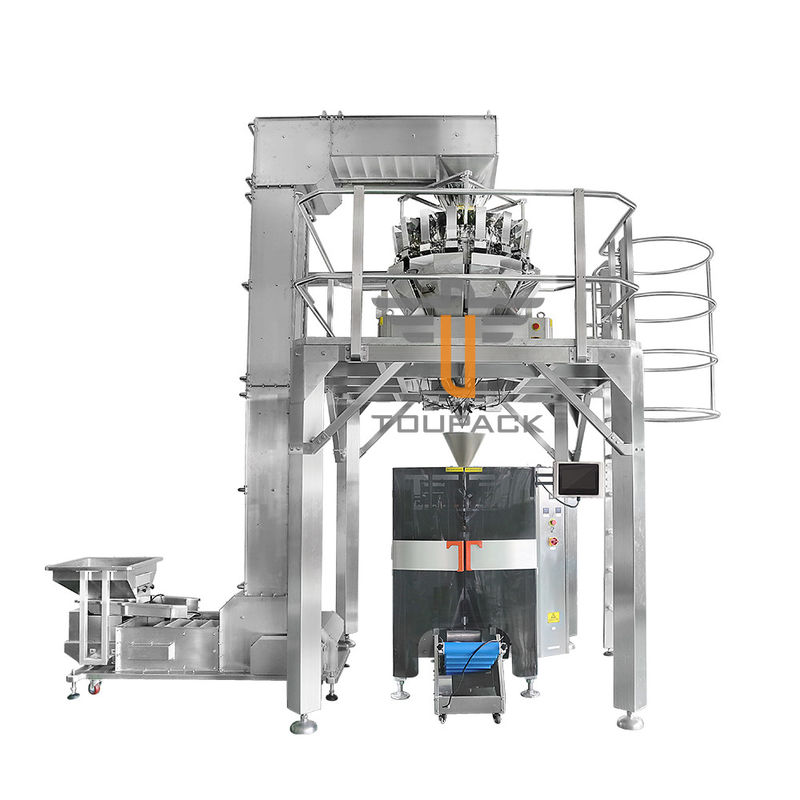

Dried Fruit VFFS Auto Weighing Filling And Sealing Machine

Dried Fruit VFFS Auto Weighing Filling And Sealing Machine

    • Dried Fruit VFFS Auto Weighing Filling And Sealing Machine
    • Dried Fruit VFFS Auto Weighing Filling And Sealing Machine
  • Dried Fruit VFFS Auto Weighing Filling And Sealing Machine

    Product Details:

    Place of Origin: Guangdong Zhongshan China
    Brand Name: TOUPACK
    Model Number: 520VFFS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: wooden case
    Delivery Time: 20-35 working days
    Payment Terms: T/T, L/C
    Supply Ability: 10set per month
    Contact Now
    Detailed Product Description
    Application:: Snack Food, Dried Fruits Bag Type:: Pillow Bag, Gusset Bag, Hole Punching Bag, Vacuum Bag
    Film Width:: 140-520mm Control Type:: Single Servo /dual Servo
    Air Consumption:: 0.8Mps 0.5 M³/min Power Supply:: Single Phase 220V 50Hz/60Hz,2.2kW
    High Light:

    auto weighing filling and sealing machine

    ,

    VFFS filling and sealing machine

    ,

    VFFS Fill Seal Machine

    Automatic Vertical Form Fill Seal(Vffs) Machine For Packaging Dried Fruit



    Automatic Weighing Filling And Sealing Machine With Multihead Weigher For Dried Fruit



    Product Description



    Application

    It is suitable to use in packing the high accuracy and easy fragile materals, such as: dry fruits, potato chips, crispy nice, snacks, candy,pistachio, sugar, apple slices, dumpling. chocolate, pet food, small wares, etcFeatures:

    1. Double servo motors for film drawing down system.

    2 Automatic film rectifying deviation function,

    3. Famous brand PLC Pneumatic system for vertical and horizontal sealing

    4. Compatible with different intemal and extemal measuring device5 Adopt clip supporting without broken bags and reduce waste



    The entire Integrated system include the following machines:

    1. Z conveyor and its feeder:


    The conveyer is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry, etc.

    For the lifting machine, the hopper is driven by the chains to lift. It's used for vertical feeding of grain or small block material. It has advantages of large lifting quantity and highness.

    The height of lifting: 360cm (discharging height 310cm)or others can be made according to customer's need.

    Conveyor speed controlled by inverter. Bucket movement controlled by level sensor.
    Max 90buckets/min

    Power: 550W Voltage: 220V
    Size: 3200x435x3650mm
    Packing size: 1) main body:200x120x110cm=2.64CBM, about 300kg gross weight
    2) vibration feeder: about 0.7CBM, about 100kg gross weight


    2. 10 /14 heads multihead weigher:

    Dried Fruit VFFS Auto Weighing Filling And Sealing Machine 0
    Main Features
    1) The most efficient and accurate weight calculation by computer.
    2) Circle dump avoid materials drops together to avoid break and pile up
    3) 10.1 inch touch screen with multiple languages.
    4) Adjustable backlight control for vision protection
    5) Compatible with single packaging machine for automatic weighing.
    6) Instant hopper vibration index for better control.
    7) 50 preset programs for multiple tasks.
    8) Individual setting linear vibration amplitude
    9) Templated motor drive, convenient for dismantling

    Use rangeFood: Snack, candy, sugar, beans, chips, frozen food, sticky food, salad, pet food
    Non food: small screws, buttons, nails, toys
    Weight range:8g-1500g/dump
    Max speed60bags/min
    Weight accuracy±1g
    Buckets10pc 1.5L weighing buckets
    Operate language English, France, Spanish, Hungary, Germany, Finland.
    Drive By step motor

    3. Platform:
    Dried Fruit VFFS Auto Weighing Filling And Sealing Machine 1


    4. Vertical packing machine :
    Dried Fruit VFFS Auto Weighing Filling And Sealing Machine 2

    Features:
    Suit for: OPP/CPP, CPP/PE, MST/PE and other types of heat sealing film
    The touch-sensitive screen can display the state of machine, operation in struction and the state of breakdown in either Chinese and English, easy operation

    It has a compact structure and every component has been made carefully, and the touching part of material are made by stainless steel

    For guaranteeing stable ling-term operation of the machine, electrical equipments and pneumatic equipments are all made by famous manufacturers of the world

    The date printer has an alarming equipment of no ink belt, without escaping printing.

    Specification:

    Packaging speed: 5-60bag/min
    Bag making size: (L)50-300mm (W)60-200mm
    Bag making type: pillow bag, vertical bag and make hole equipment (need to add extra money)
    Filling range: 150-1300ml
    Max packaging film width: 440mm
    Film thickness: 0.04-0.08mm
    Air consumption: 200L/min
    Total power/ voltage: 2.2KW/220V, 50-60HZ
    Outside size: 1400X970X1600mm
    Gross weight: 400kg

    Application:
    Grain, strip and slice materials such as expanded food, shrimp cracker, candies, peanuts and popcorns.

    Package for grain materials such as rice, salt, jelly, mung bean oatmeal and laundry powder.

    Function:
    The design of this machine is reasonable and elaborate. Its performance is stable and it is easy to handle. It can cut the edge of every single bag or every several joint bags according to specific requirement. All proceedings of feeding, measure, bag-making, date printing, filling, puffing, sealing, cutting and outputting finished products are finished automatically.


    5. Discharge conveyor:
    (stainless steel main frame and food class belt)
    Feeding speed30m/minute
    dimension2110×340×500mm
    Voltage220V/45W
    Packing size179x48x53cm
    Net weight60kg
    Gross weight85Kg

    6. Rotary  table:

    Our Rotary Turntables are fabricated in s/s making it suitable for the food, beverage, chemical clean rooms and pharmaceutical industry.

    Made by 304 stainless steel

    Diameter:1000-1200mm

    Height: 70-80cm (with the leg, so can adjust the height)

    Speed: adjustable, controlled by governer

    Power:220V. 50hz or 110V 60HZ, 60W

    Max speed: 14-25turns/min



    Dried Fruit VFFS Auto Weighing Filling And Sealing Machine 3
