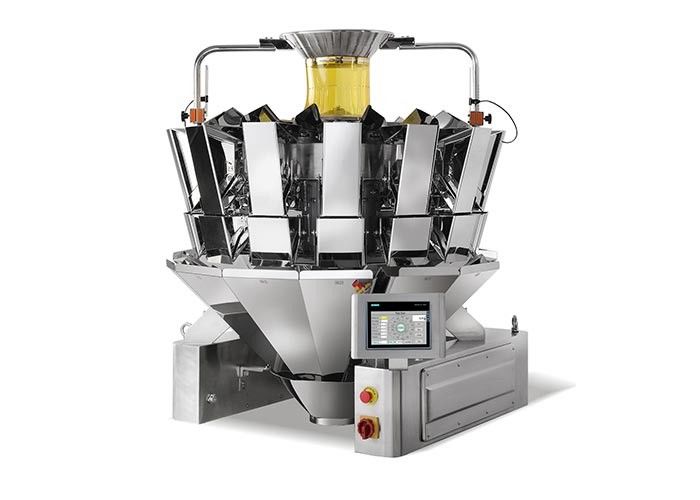

Automatic Banana Chips SS304 2.5L Fruit Multihead Weigher

Automatic Banana Chips SS304 2.5L Fruit Multihead Weigher

    • Automatic Banana Chips SS304 2.5L Fruit Multihead Weigher
    • Automatic Banana Chips SS304 2.5L Fruit Multihead Weigher
  • Automatic Banana Chips SS304 2.5L Fruit Multihead Weigher

    Product Details:

    Place of Origin: Guangdong Zhongshan China
    Brand Name: TOUPACK
    Model Number: TY-A-M14-1; TY-A-P14-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: wooden case
    Delivery Time: 10-25 working days
    Payment Terms: T/T, L/C
    Supply Ability: 100set per month
    Contact Now
    Detailed Product Description
    Material:: Stainless Steel 304 Hopper Volume:: 0.8L/0.5L/1.6L/2.5L
    Max. Speed:: 120 WPM Accuracy:: 0.1g
    HMI:: 7'' / 10'' Color Touch Screen Control System:: MCU / PLC
    Power Supply: AC220V ±10% 50HZ/60HZ, 2KW After Warranty Service: Video Technical Support, Online Support
    High Light:

    2.5L Fruit Multihead Weigher


    SS304 Fruit Multihead Weigher


    Banana Chips Multihead Weigher

    Automatic Multihead Weigher For Packing Banana Chips And Dried Fruits


    Suitable for quantitative weighing of dry fruits, mixed nuts and etc.

    According to the characteristic of material can be fine adjusted the opening and closing speed of the bucket door to avoid crush and block.



    It is widely used for weighing Dried Fruits, candy, chocolates, potato chips, plantain chips, seeds, nuts, jelly, Animal feed, petfood, Potato Chips, beans sticky products, frozen products etc.


    Automatic Banana Chips SS304 2.5L Fruit Multihead Weigher 0


    All stainless steel/aluminum made.

    Auto-pause when there is a material shortage.

    High precision and durable load cell.

    Help menu to understand each function and parameters.

    Recoverable 20 pre-set parameters, up to 100 programs can be saved

    Multi language touch screen interface.



    HBM ultra precision Load cells.

    All machinery units are Inter-changeable, easy maintenance and reparation.

    Resistant for Water spraying and humidity.

    Special climatization design for frozen environment optional

    Auto vibration magnitude adjusting to adapt different products or weights.

    Sequential hopper discharging to avoid congestions or blockage.

    Overweight signal and Auto-rejection system.

    Dysfunctional weighing head can be suspended to continue production.

    Leak proof hoper, Corrugated hopper, SUS 316, Teflon coated optional

    Counting Application







    Automatic Banana Chips SS304 2.5L Fruit Multihead Weigher 1Automatic Banana Chips SS304 2.5L Fruit Multihead Weigher 2


    1. How to install the new machine?
    our machines are designed easy for installation; Installation video is also available. If needed, we'll arrange professional engineer to service overseas if buyers bear related cost.

    2. How to solve the problems during using the machines?
    We have experienced after-sales team ready to solve the problems for our buyers. Buyers describe the problems to us by email or telephone; sometimes we need you to supply the problem pictures and videos for our engineers for reference, we will try to discuss with buyers and try to get the most effective solution in shortest time. If necessary, we can arrange the most professional engineer to go to buyer's factory for solving problems as soon as possible.

    3. What's your warranty period and spare parts supply?
    We offer one year warranty and life-long maintenance. In the first year, if any parts broken not occurred by human factor and parts not in the list of 1% free spare parts, we will supply the new replacement parts freely.

    4. Do you supply OEM service?
    Yes. OEM service is available. Our designer would make your private idea into being. We will protect your sales area, ideas of design and all private information belonged to you.



    How multihead weighing works
    A 'typical target' weight per pack might be 100 grams of a product. The product is fed to the top of the multihead weigher where it is dispersed to the pool hoppers. Each pool hopper drops the product into a weigh hopper beneath it as soon as the weigh hopper becomes empty.
    The weigher's computer determines the weight of product in each individual weigh hopper and identifies which combination contains the weight closest to the target weight of 100g. The multihead weigher opens all the hoppers of this combination and the product falls, via a discharge chute, into a bagmaker or, alternatively, into a distribution system which places the product, for example, into trays.
    Dispersion is normally by gravity, vibration or centrifugal force, while feeding can be driven by vibration, gravity, belts, or screw systems.
    An extra layer of hoppers ('booster hoppers') can be added to store product which has been weighed in the weigh hoppers but not used in a weighment, thus increasing the number of suitable combinations available to the computer and so increasing speed and accuracy.
    How multihead weighing can help a business

    Multihead weighing can help in the following ways:

    Filling bags
    The range of bags which can be filled using multihead weighers is immense. At one end of the scale are large catering packs of many kilogrammes. At the other are small bags of crisps which can be handled at high speed and efficiency.


    Products containing up to eight components can be mixed on a multihead weigher, very accurately at high speeds. The weigher is divided into sections, each with its own infeed. For example, a breakfast cereal containing hazelnuts and dried fruit plus two relatively cheap ingredients, could be weighed on a multihead with say eight heads devoted to each of the more expensive components and four heads to each of the other two. This would ensure high weighing speed while ensuring that overfilling of the expensive ingredients was negligible.


    Placing into trays
    A well-engineered distribution system enables you to combine the speed and accuracy of multihead weighing with precise, splash-free delivery of product into trays.


    Multihead weighers were used initially for weighing certain vegetables. Their use expanded exponentially in the 1970s and 1980s when they were applied to the rapid weighing of snacks and confectionery into bags. What cherry tomatoes and crisps had in common was that they flowed easily through the machine and into the pack, with no more encouragement than gravity and a moderate level of vibration of the feeders. Since then, the accuracy and relative speed have been extended to many products which would in the early days of the technology have been seen as difficult to handle.

    Sticky products
    Fresh meat and fish, whether in a sauce or not, poultry and cheese (including grated cheese) can be moved along by using belts or screw feeders rather than vibration.


    Granules and powders
    While free-flowing, fine-grained powders can be weighed more cheaply by other means (such as cut-gate or linear weighers, or volumetric feeders), granules such as coffee granules and products such as loose tea can be weighed on today's multiheads.


    Fragile products
    Weighers with more shallow angles of descent and various cushioned inserts have made it possible to pack delicate and brittle items such as hand-made chocolates and gourmet biscuits.


    Complex products
    Using mix-weighing combined with a distribution system tailored to deliver separate components into a tray, a ready meal can be assembled with just the right quantities of, say, rice, meat and vegetables in the appropriate compartments.
