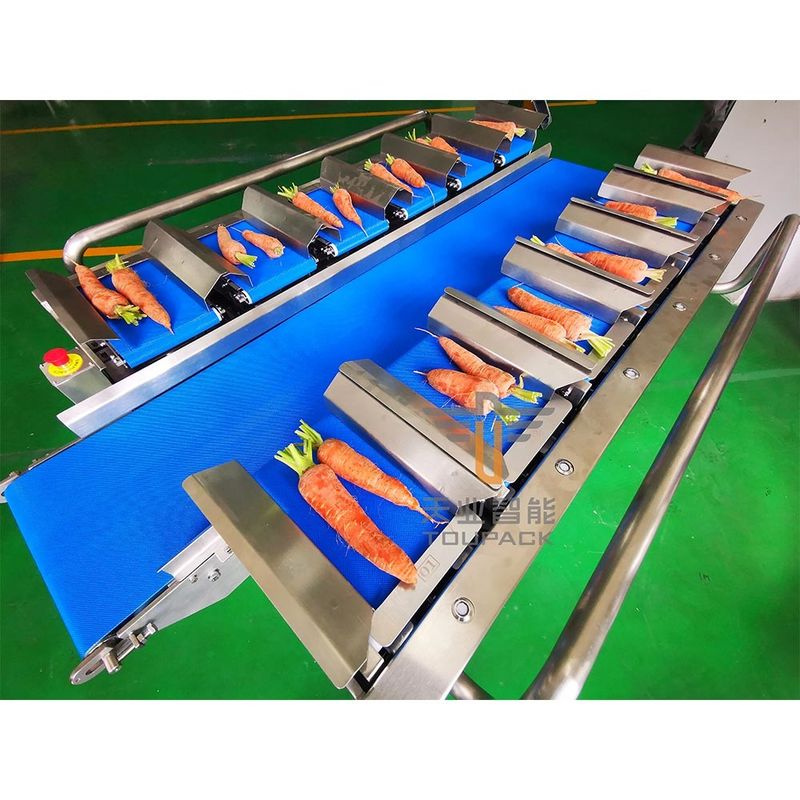

Semi Automatic 12 Head Linear Combination Weigher

Semi Automatic 12 Head Linear Combination Weigher

    • Semi Automatic 12 Head Linear Combination Weigher
    • Semi Automatic 12 Head Linear Combination Weigher
    • Semi Automatic 12 Head Linear Combination Weigher
    • Semi Automatic 12 Head Linear Combination Weigher
  • Semi Automatic 12 Head Linear Combination Weigher

    Product Details:

    Place of Origin: Guangdong Zhongshan China
    Brand Name: TOUPACK
    Model Number: TY-1A-DZ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Pollywood case
    Delivery Time: 10-30 working days
    Payment Terms: L/C, T/T
    Supply Ability: 100set per month
    Contact Now
    Detailed Product Description
    Max. Weighing (one Belt):: 2000g Max. Speed:: 30 WPM
    Control System:: PLC Applicable:: Irregular Shape, Large Unit Size Products
    Material:: SUS304 Waterproof:: IP 65
    High Light:

    Linear Combination Weigher

    ,

    12 Head Combination Weighing Scale

    ,

    12 Head Linear Multihead Weigher

    12 Head Linear Combination Weigher For Fruits And Vegetables Semi-Automatic Combination Weighing Scale



    Application:


    Semi-automatic combination weighing Scale is our company's newly-developed product, which can be used to dynamically test the weigh of the product with measuring range of less than 40 kilogram on-line. With the Germany HBM sensor, advanced information processing software of dynamic weight and a variety of software, electronic and machine options, this series of check weigher can meet the requirement of on-line weighing in such industries as pharmacy, daily chemical, food and battery.

    Applicable for weighing of medium bag / box packed products that are of irregular shape, large unit size or easy to get damaged during weighing, like green vegetables, fruits, meat loaf, or such seafood as fish, lobster, etc.


    Specification:







    Model TY-1A-DZ Speed 10-30times/min
    Combinational Range 50-4000g Number of scale 10/12/16units
    Max Range for each unit 1000g Weighing Cell Strain gauge
    Minimum resolution 0.1g Net weight Appr. 150kg
    Platform Size 310mm(L)x150mm(W) Operational temperate 0-40C
    Conveyor size 1200mm(L)x220mm Humidity 30-85% no condensation
    Machine Dimension 1600mm(L)x935mmx760mm(H) Rated power Max .650w
    Deliver time 15-20 workdays
    Package Plywooden case for package suitable for export shipment
    Payment term 50%T/T deposit,50% before shipping



    Features:


    1.12 units high precision scale with conveyor belt.

    2.High-speed combination arithmetic.
    3.Snapfit platform,easy for belt clean.
    4.Orient Motor.
    5.HBM Loadcell.
    6.Colorful touch screen display with muti-language.
    7.100 products memory.
    8.Made from SUS304 with water proof design.
    9.Optional customer define operation table.
