Touch Screen 70m/Min Security Food X Ray Inspection Systems

Touch Screen 70m/Min Security Food X Ray Inspection Systems

Security Food X Ray Inspection Systems

touch screen X Ray Inspection Systems

70m/Min X Ray Inspection Systems

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE

Model Number:

TTX-2417K100

Contact Us
Request A Quote
Product Details
X-ray Light Source::
150W/100KV
Detecting Width::
240mm
Detecting Height::
170mm
Accuracy::
SUS Ball Φ0.3mm, SUS Wire Φ0.2*2mm
Transfer Speed::
10-70m/ Min
HMI::
17 Inch Colorful Touch Screen
Connectivity::
LAN Port, USB Port
X-ray Leakage::
1 Millisievert / Hour
System:
Windows 7
Power Supply:
AC220V±10% 50Hz(60Hz) 1.5kVA Max
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
wooden case
Delivery Time
10-25 working days
Payment Terms
T/T, L/C
Supply Ability
30 sets per month
Product Description
Touch Screen 70m/Min Security Food X Ray Inspection Systems
Product Attributes
X-ray Light Source: 150W/100KV
Detecting Width: 240mm
Detecting Height: 170mm
Accuracy: SUS ball Φ0.3mm, SUS wire Φ0.2*2mm
Transfer speed: 10-70m/ min
HMI: 17 inch colorful touch screen
Connectivity: LAN Port, USB Port
X-ray Leakage: 1 millisievert / hour
System: Windows 7
Power supply: AC220V±10% 50Hz(60Hz) 1.5kVA Max
Product Description

X Ray Security Inspection System For Food Product Automatic Inspection

Application

Used for detecting metallic and non-metallic materials and defects in food, chemical, and pharmaceutical industries, including glass, ceramics, stones, bones, hard rubber, and plastic.

Main Features
  • Up to 8 grades of image processing for optimal product adaptability and stability
  • Capable of shielding edge, desiccant, canned food, and aluminum clamp for ham sausage
  • X-ray leakage meets US FDA and European CE standards
  • Includes air conditioning and IP66 protection
  • Easy to dismantle and clean
Configuration
  • Frequency converter: Danfoss (Denmark)
  • X ray collector: Detection Technology(DT) (Finland)
  • Industrial air conditioning: Pfannenberg (Germany)
  • X ray: VJ GROUP (USA)
  • PLC: MITSUBISHI (Japan)
  • Limit switch: OMRON (Japan)
Specifications
Model TTX-2417K100 TTX-4017K100 TTX-5026K100 TTX-6035K100
X-ray Light Source 150W/100KV 210W/100KV 350W/100KV
Detecting Width 240mm 400mm 500mm 600mm
Detecting Height 170mm 170mm 260mm 350mm
Accuracy SUS ball Φ0.3mm, SUS wire Φ0.2*2mm
Transfer speed 10-70m/ min
HMI Germany 17 inch touch screen
Connectivity LAN Port, USB Port
Working environment Working temperature: -10℃~40℃ (Cooling method: Air conditioned cooling)
Working humidity: 30%~90%, No dewing (Humidity controlling: Anti-humidity device)
X-ray Leakage 1 millisievert / hour
Protection method Lead-free protective curtain (easy for disassembling)
Alarming method Acousto-optic alarming
Power Supply AC220V ± 10% 50Hz(60Hz) 1.5kVA Max
Body Material SUS304

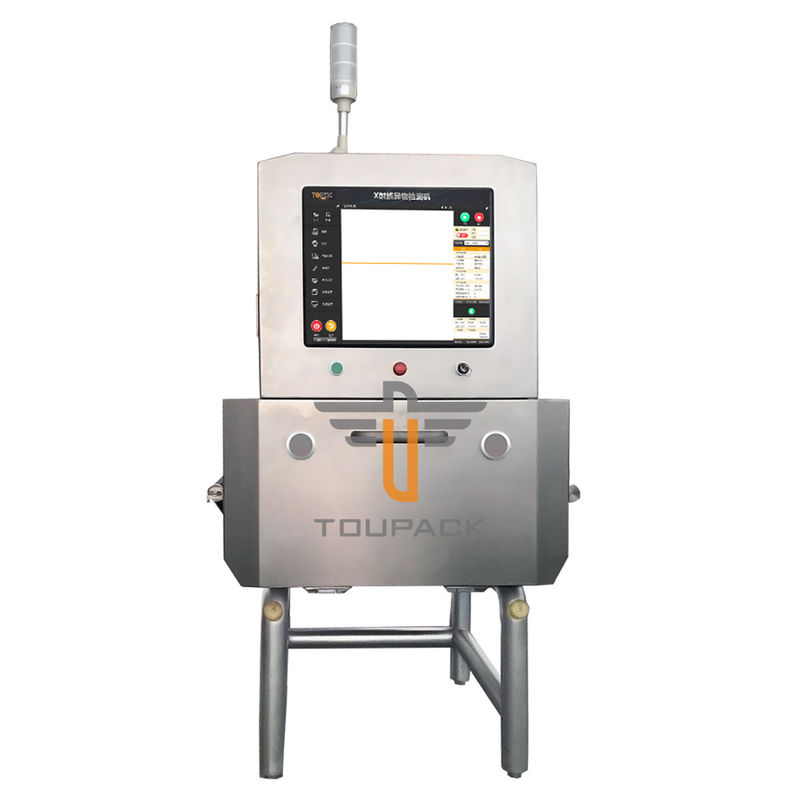

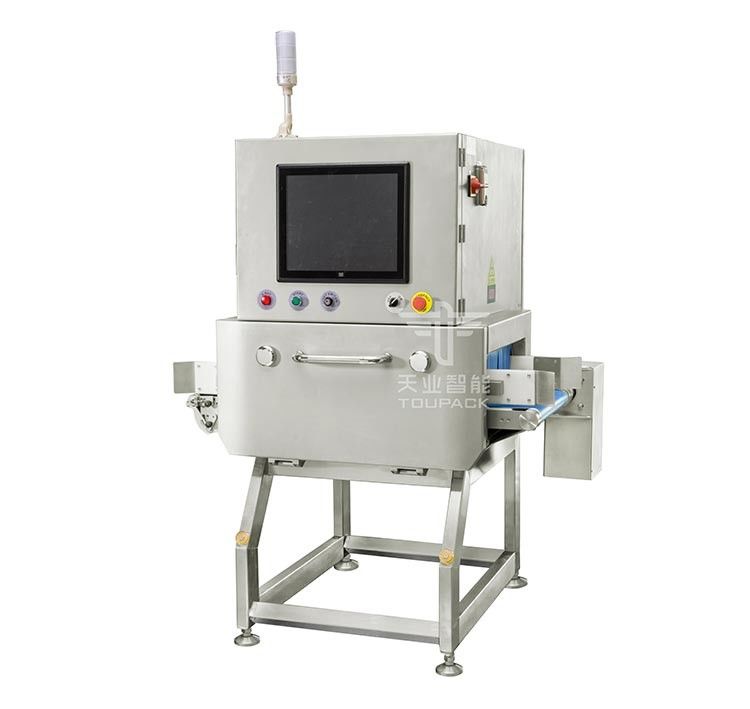

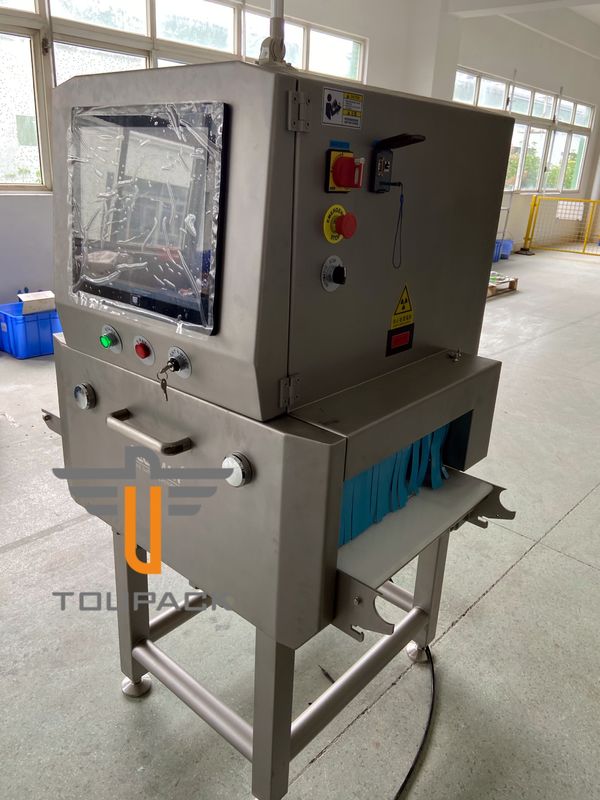

Product Images
