30WPM Vegetables Combination weigh Belt Scale PLC Control High Accuracy Grader

30WPM Vegetables Combination weigh Belt Scale PLC Control High Accuracy Grader

Vegetables Belt Combination Scale

30WPM Belt Combination Scale

PLC Control Belt Combination Scale

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE

Model Number:

DP12

Contact Us
Request A Quote
Product Details
Material::
Stainless Steel 304 Belt Scale
Max. Speed::
10~30 WPM Belt Scale
Accuracy::
0.1g
HMI::
10'' Color Touch Screen
Control System::
PLC
Power Supply:
AC220V ±10% 50HZ/60HZ, 2KW
After Warranty Service:
Online Support, On-site Support
Feature:
12 Heads Belt Weigher
PLC:
SIEMENS
Belt:
Food Grade Belt
IP Grade:
Waterproof IP65
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
plywood case
Delivery Time
10-25 working days
Payment Terms
T/T, L/C
Supply Ability
100 set per month
Product Description

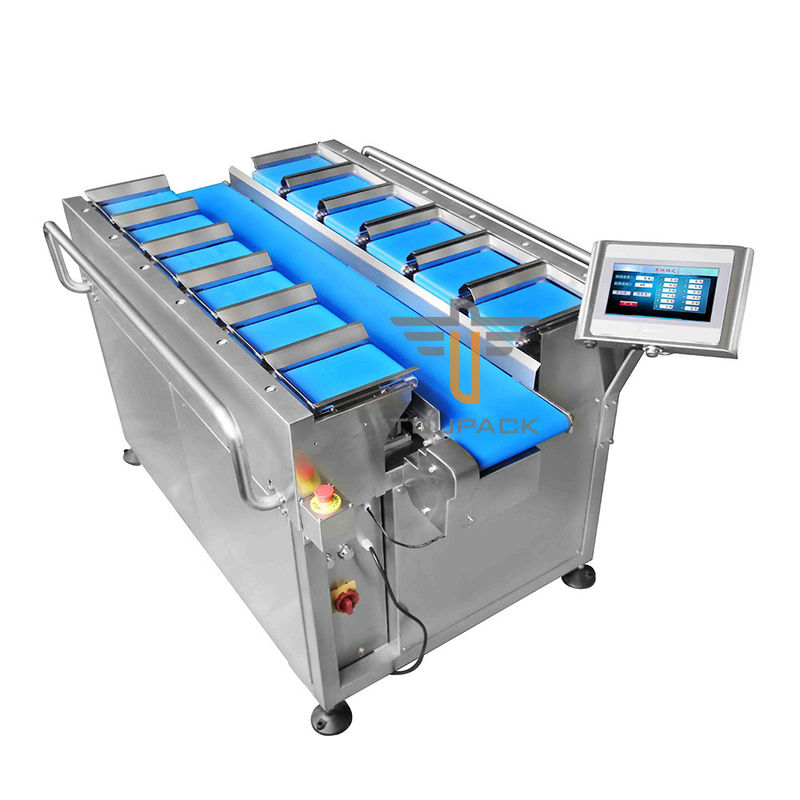

30WPM Vegetables Combination Weigh Belt Scale PLC Control High Accuracy Grader
Product Attributes
Attribute Value
Material Stainless steel 304 belt scale
Max. Speed 10~30 WPM belt scale
Accuracy 0.1g
HMI 10" color touch screen
Control System PLC
Power Supply AC220V ±10% 50HZ/60HZ, 2KW
After Warranty Service Online support, on-site support
Feature 12 heads belt weigher
PLC SIEMENS
Belt Food grade belt
IP grade Waterproof IP65
Product Description
Siemens PLC Belt Scale

The 30WPM Vegetables Combination Weigh Belt Scale with PLC Control is a high accuracy grader designed for industrial food processing applications.

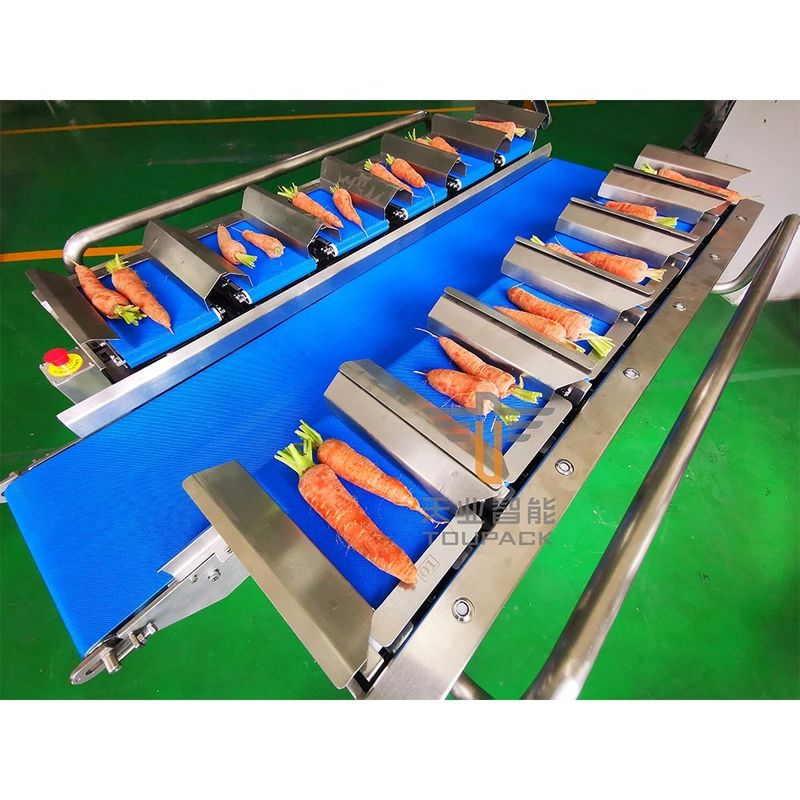

Vegetables Belt Scale Application

The main computer calculates the desired combination in a fraction of a second and activates the conveyor belt of the relevant actuator units. The targeted product amount is forwarded ready for packing while the processor simultaneously calculates the next possible combination.

This system is ideal for weighing irregular shaped products including:

  • Vegetables: cucumber, chili, carrot, potato
  • Irregular fruits
  • Irregular seafood: fish, frozen fish
Key Features
  • Professional digital weighing module with high precision and good stability
  • Control system: MCU or Siemens PLC (optional)
  • Touch screen interface with multi-level access and up to 16 language options
  • 99 preset product parameters for different program requirements
  • Weighing hopper discharge system prevents product blocking
  • Combined weighing and counting functionality
  • Real-time monitoring of vibration pan amplitude and product weight
  • SUS304/316 construction with IP65 dust and waterproof design
  • Easy cleaning function with hoppers opening for maintenance
  • Modular control system design for easy maintenance
Technical Characteristics
  • Stainless steel 304 waterproof electric cabinet
  • 10" touch screen with stainless steel housing
  • SIEMENS PLC control system
  • Food grade belt
  • Stainless steel waterproof load cell
Specifications
Model TY-1A-P1216-101
Max. Weighing (one hopper) 1000g
Accuracy ±0.5g
Min. Scale Interval 0.1g
Max. Speed 10-30 WPM
Number of heads 12 heads
Control System PLC SIEMENS control system
HMI 7" / 10" color touch screen
Power Supply AC220V ±10% 50HZ / 60HZ, 2KW
Packing Dimension 2000(L)*1200(W)*1240(H)mm
Package weight 375kg
Product Images
Our Facility
Why Choose Us
  • Over 12 years weighing and packing machine design & manufacturing experience
  • Over 60 countries customers choices
  • Professional team with passion and diligence
  • All-in-one stand service
After-Sale Services
  • Manual / Videos of machine installation, adjusting, maintenance available
  • Telecom or online face to face communication available 24 hours
  • Engineers & technician available for international service
  • 1 year warranty on all machines
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?

A: We are manufacturer with our own professional factory in Guangdong, China.

Q2: Do you sell the accessories for products?

A: Yes. We provide matching parts for all our testing equipment.

Q3: How about the packing for product?

A: We use secure wooden cases for all shipments.

Q4: Do you accept customer Logo and customized?

A: We accept all types of customization and branding for our products.

Q5: What's your main product?

A: We specialize in multi-head weighers, conveyor machines, packing machines, metal detectors, check weighers and related electronic products.

Q6: How about your after-sales policy?

A: Customer First. We offer technical support through our R&D team with a standard 12-month warranty on all products.
