SS304 Desk Top Fruit Multihead Weigher 12 Head Weighing Scale

SS304 Desk Top Fruit Multihead Weigher 12 Head Weighing Scale

Desk Top Fruit Multihead Weigher

SS304 Fruit Multihead Weigher

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

CE

Model Number:

Desk Top Weigher DT12

Contact Us
Request A Quote
Product Details
Material::
Stainless Steel 304 Desk Top Weigher
Max. Speed::
10~30 WPM Desk Top Weigher
Accuracy::
0.1g
HMI::
10'' Color Touch Screen
Control System::
PLC Control System Desk Top Weigher
Power Supply:
AC220V ±10% 50HZ/60HZ, 2KW
After Warranty Service:
Online Support, On-site Support
Feature:
12 Heads Desk Top Weigher
PLC:
SIEMENS Desk Top Weigher
Belt:
Food Grade Belt
IP Grade:
Waterproof IP65
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
plywood case
Delivery Time
10-25 working days
Payment Terms
T/T, L/C
Supply Ability
100 set per month
Product Description

Siemens PLC

Desk Top Weigher 12 Head Simens PLC Control System Weighing Scale



Desk Top Weigher​ application:


The main computer calculates the desired combination in a fraction of a second and activates the conveyor belt of the relevant actuator units. The targeted product amount is forwarded ready for packing. In the mean time, the processor is already calculating the next possible combination.



Applicable for weighing of irregular shaped products, such as vegetables like cucumber, chili, carrot, potato; Irregular fruits and irregular seafood like fish, frozen fish.


Siemens PLC Belt Scale

Features :



1. Professional digital weighing module with high precision and good stability



2. Control system: MCU or Siemens PLC (optional).



3. Touch screen interface has different levels of authorized access; up to 16 different languages for choice; application software upgraded through USB.



4. Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements.



5. Weighing hopper able to discharge in turn to effectively prevent products from blocking.



6. Weighing and counting function to meet diverse needs from customers.



7. Real-time display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running status of the machine.



8. Machine body with SUS304/316 for option; IP65 dust and waterproof design.



9. Cleaning function: able to make the hoppers in opening state for easy daily cleaning and maintenance.



10. Modular design of control system for easy maintenance and cost-saving.



Siemens PLC belt weigher frozen fish processing machine waterproof

Siemens PLC Desk Top Weigher Techanical Character :



1. Stainless steel 304 waterproof electric carbinet



2. 10' touch screen with stainless steel housing



3. SIEMENS PLC control system



4. Food grade belt



5. Stainless steel waterproof load cell




Desk Top Weigher Specifications:


Model DT12
Max. Weighing (one hopper) 1000g
Accuracy x (0.5)
Min. Scale Interval 0.1g
Max. Speed 10-30 WPM
Number of heads 12 heads
Control System PLC SIEMENS control system
HMI 7’’ / 10’’ color touch screen
Power Supply AC220V ±10% 50HZ / 60HZ, 2KW
Packing Dimension 2000(L)*1200(W)*1240(H)mm
Package weight 375kg

Desk Top Weigher 12 Head Simens PLC Control System Weighing Scale

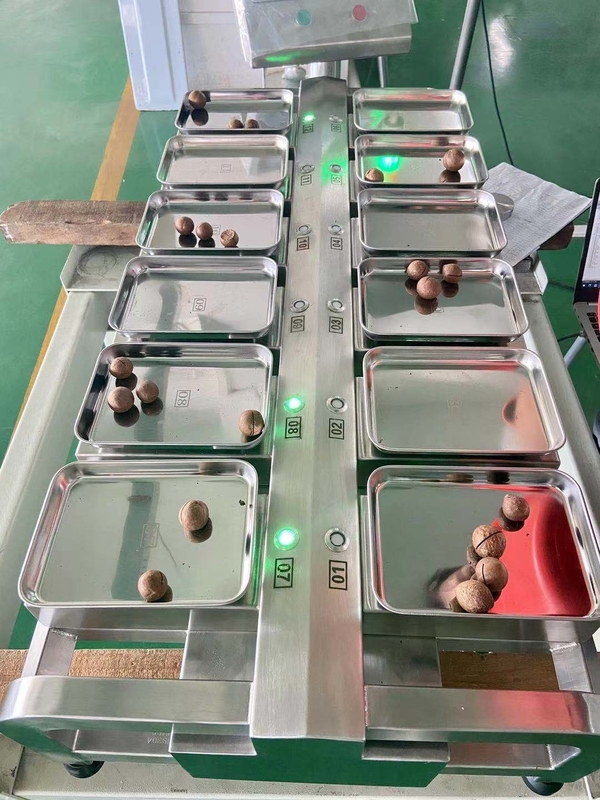

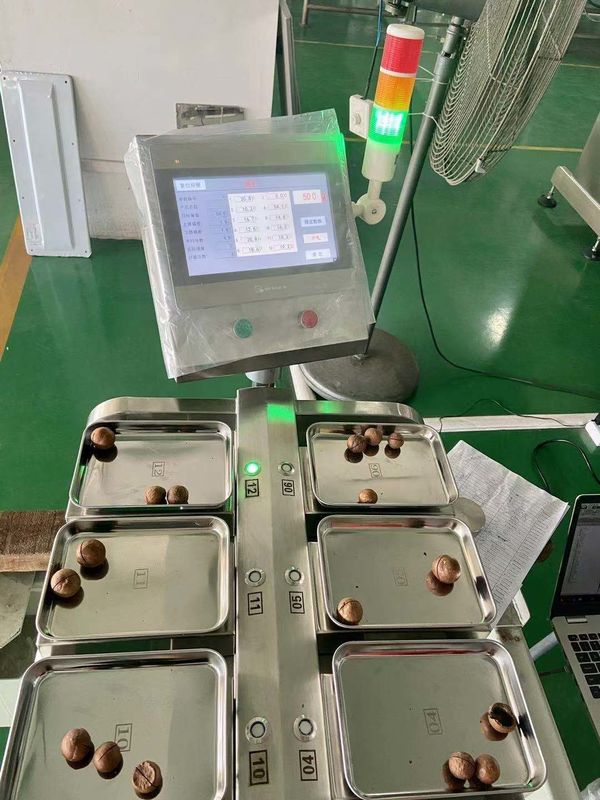

Detail:

SS304 Desk Top Fruit Multihead Weigher 12 Head Weighing Scale 0

SS304 Desk Top Fruit Multihead Weigher 12 Head Weighing Scale 1

SS304 Desk Top Fruit Multihead Weigher 12 Head Weighing Scale 2


Office&Workshop:

SS304 Desk Top Fruit Multihead Weigher 12 Head Weighing Scale 3

SS304 Desk Top Fruit Multihead Weigher 12 Head Weighing Scale 4SS304 Desk Top Fruit Multihead Weigher 12 Head Weighing Scale 5


>>>Why choose us:



ㆍOver 12 years weighing and packing machine design & manufacturing experience



ㆍOver 60 countries customers choices



ㆍProfessional team with passion and diligence



ㆍAll-in-one stand service




After-sale services:



1. Manual / Videos of machine installation, adjusting, maintenance are available for you.



2. If any problems happened, telecom or online face to face communication available 24 hours.



3. Engineers & technician Engineer available to serve machines for your countries.



4. The machine will have 1 year warranty of machine.
