Place of Origin:
China
Brand Name:
TOUPACK
Model Number:
TY-ZHZ072M160-01-11

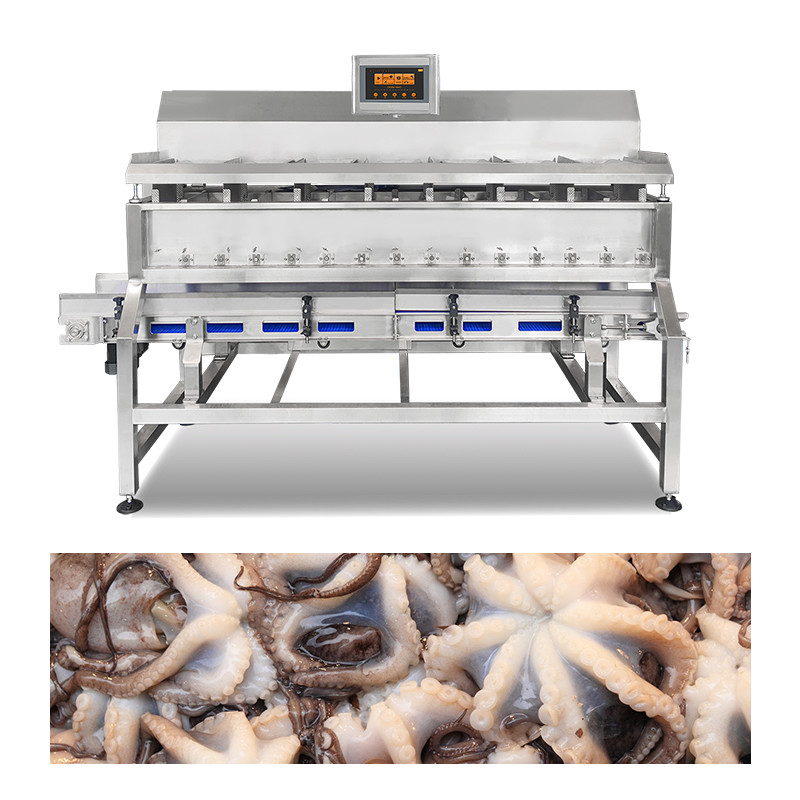

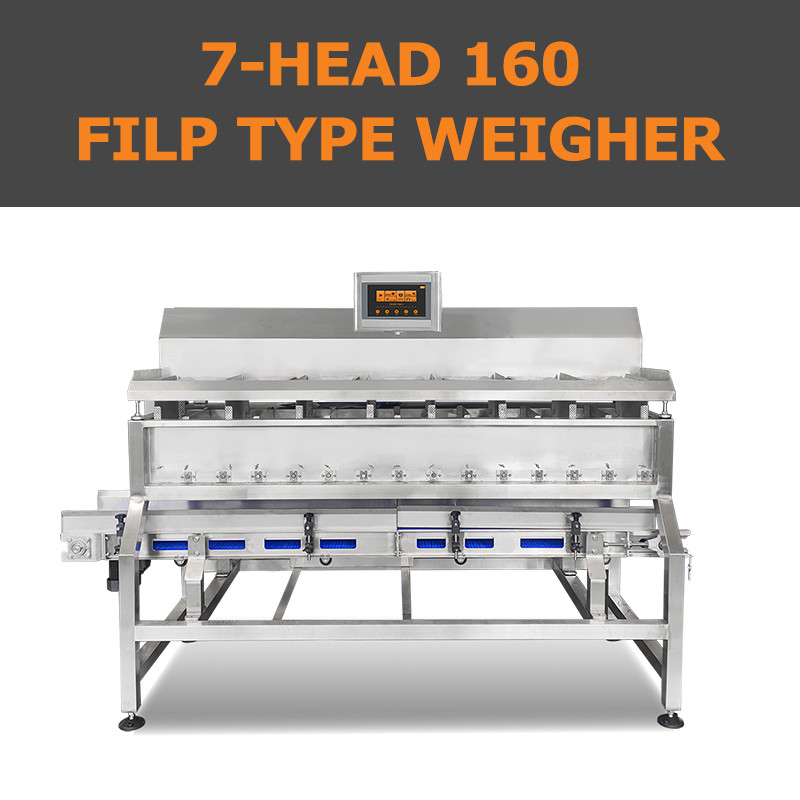

High Speed Sticky Materials Weighing 7 -Head 160 Flip Type Weigher For Octopus Beef Slices
Application:
7-Head 160 Flip Type Weigher is suitable for fresh and aquatic industry. The single material is large in volume and irregular in shape, such as the whole fish, sausage, hair belly, beef slices and sashimi and other sticky materials.
Functional Performance:
——High speed, high precision:Adopt high-precision digital sensor, fast sampling speed and high precision.
——Zero tracking:Can be reset manually or automatically, and dynamic zero tracking.
——Weighing accuracy:The latest optimized sampling algorithm to improve weighing accuracy.
——Material blocking problem : Multiple feeding hopper discharges can effectively solve blockage.
——Precise localization :Intelligent fault detection and error reporting, accurate positioning to solve problems.
——Accurate counting:The combination of weighing and counting functions improves counting accuracy.
Overall Dimension:
Action Performance:
Each weighing hopper corresponds to two memory buckets in the lower layer. After taking the value, turn left and right to put the material into the corresponding memory bucket respectively. A total of 14 memory buckets in the lower layer participate in combining the target weight value. The combined material is put into the lower aggregate conveying line and transported to the subsequent station.

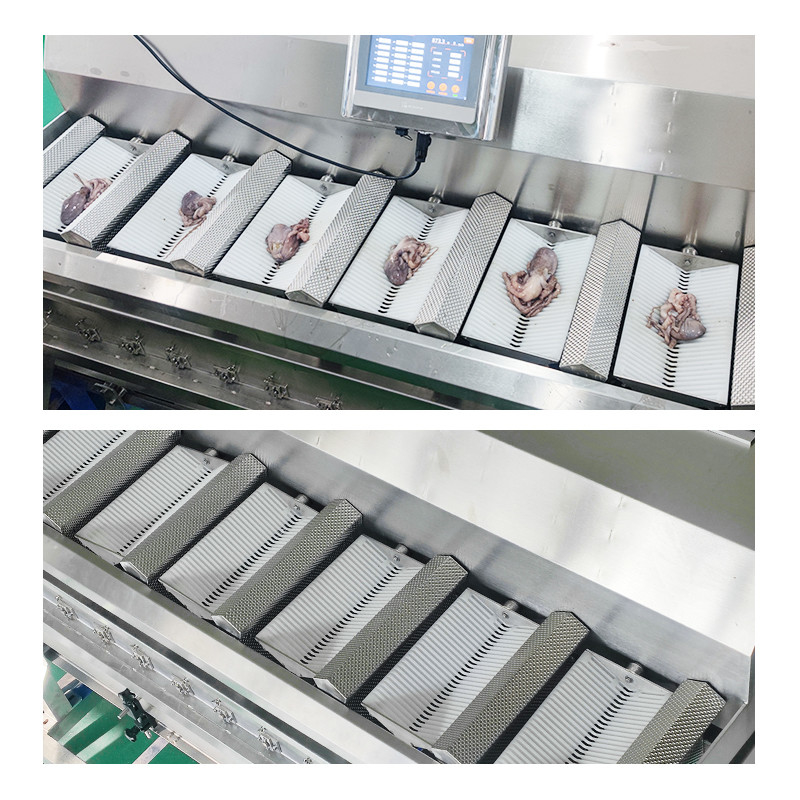

1. Flip weighing bucket, no bucket door structure, avoid material clamping.
2. The weighing unit is distributed in a single row, which is easy to operate and is equipped with an automatic feeding device.
3. The corrugated structure of the material contact surface reduces the friction force of the contact surface and prevents the material from sticking and remaining.
Specifications:
Model |
TY-ZHZ072M160-01-11 |
Power Supply |
AC220V±10% 50Hz (60HZ) |
Rated power |
1kW |
Max.Weighing (one hopper) |
50~1000g |
Accuracy | ±0.5g |
Min.Scale Interval | 0.1g |
Weighing speed | 20~25 BPM |
Weighing material size |
≤280mm(L)*80mm(W)*50mm(H) |
Product dimensions | 2600mm(L)*1000mm(W)*1800mm(H) |
Control system |
MCU |
Preset Product Number |
99 |
Operating Direction | Face the machine, from right to left |
External air source | 0.6-1Mpa |
Work environment |
Temperature:0℃~40℃ Humidity:30%~95% |
>>Why choose us:
ㆍOver 12 years weighing and packing machine design & manufacturing experience
ㆍOver 60 countries customers choices
ㆍProfessional team with passion and diligence
ㆍAll-in-one stand service
After-sale services:
1. Manual / Videos of machine installation, adjusting, maintenance are available for you.
2. If any problems happened, telecom or online face to face communication available 24 hours.
3. Engineers & technician Engineer available to serve machines for your countries.
4. The machine will have 1 year warranty of machine.
FAQ:
Q1: Are you a manufacturer or a trading company?
A: We are manufacturer, we have professional factory in Guangdong China.
Q2. Do you sell the accessories for products?
A: Yes. We have Match the parts for our testing equipment.
Q3. How about the packing for product?
A: We takes of wooden case and it is very safe.
Q4. Do you accept customer Logo and customized?
A: we accept kinds of customized and logo of all of our products for customers.
Q5. What's your main product?
A: We are specialized in multi-head weigher, conveyor machine, packing machine, Metal detector, Check weigher and other related electronic products and machine.
Q6. How about your after-sales policy?
A: Customer First. We have our own R&D team and we can offer tech-support. All of our products normal warranty is 12months.
