Semi Automatic 12 Belt Combination Weigher For Vegetable Carrot Cucumber Chili

Semi Automatic 12 Belt Combination Weigher For Vegetable Carrot Cucumber Chili

Semi Automatic 12 Belt Combination Weigher

Chili Combination Weigher

Place of Origin:

China

Brand Name:

TOUPACK

Certification:

CE,ISO9001

Model Number:

TY-ZHZ121P160-01-13

Contact Us
Request A Quote
Product Details
Material:
SUS304 Stainless Steel
Numbers Of Scales:
12
Customized Support:
OEM,ODM
Belt Material:
Food Grade
Parameter Adjustment:
Auto Learning/Manual Setting
Display Type:
Smart Touch Screen
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Wooden case
Delivery Time
15 works day
Payment Terms
L/C, T/T
Product Description
Semi Automatic 12 Belt Combination Weigher For Vegetable Carrot Cucumber Chili
Product Specifications
Material SUS304 Stainless Steel
Numbers of Scales 12
Customized support OEM,ODM
Belt material Food grade
Parameter Adjustment Auto learning/Manual setting
Display Type Smart touch screen
Product Description

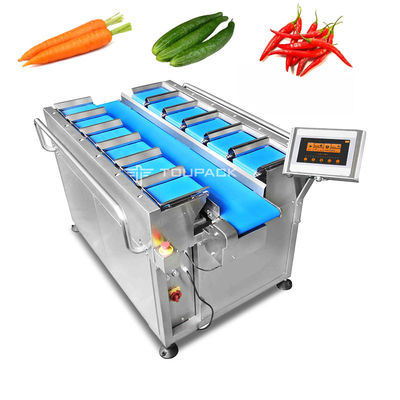

The Semi-Automatic 12 Belt Combination Weigher is designed for precise weighing of vegetables including carrots, cucumbers, and chili, as well as durian fruit pulp. This system transfers materials to different hoppers via multiple belt conveyors, combining weighing results to achieve accurate total weights.

Applications

This belt combination scale is widely used in food processing, chemical, and pharmaceutical industries for:

  • Quantitative packaging of irregularly shaped, wet, sticky, or fragile items
  • Fresh or frozen meat, fish, shrimp, and seafood packaging
  • Vegetables and fruits weighing
Semi Automatic 12 Belt Combination Weigher For Vegetable Carrot Cucumber Chili 0 Semi Automatic 12 Belt Combination Weigher For Vegetable Carrot Cucumber Chili 1 Semi Automatic 12 Belt Combination Weigher For Vegetable Carrot Cucumber Chili 2 Semi Automatic 12 Belt Combination Weigher For Vegetable Carrot Cucumber Chili 3 Semi Automatic 12 Belt Combination Weigher For Vegetable Carrot Cucumber Chili 4
Technical Specifications
Model TY-ZHZ121P160-01-13
Max. Weighing (one belt) 20-5,000g
Accuracy x (0.5)
Min. Scale Interval 0.1g
Max. Speed 40 BPM
Size of weighing table 250*160mm
Control System PLC
HMI 10" color touch screen
Power Supply AC220V ±10% 50HZ/60HZ, 1KW
Packing Dimension 1,900mm(L)*1,240mm(W)*1,207(H)mm
Machine weight 280kg
Package weight 340kg
Key Features

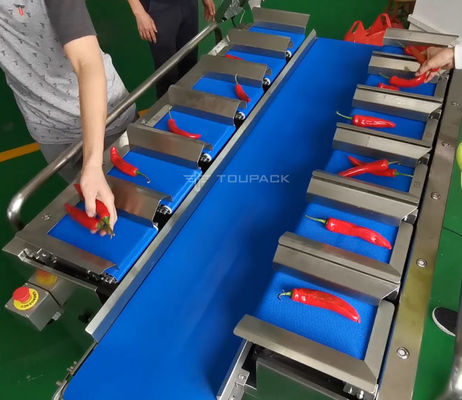

  • Manual material input with automatic weighing - ideal for materials with poor flow characteristics
  • Optimized weigh hopper combination for precise target weight discharge
  • High precision sensors for accurate measurements
  • Efficient asynchronous discharge system prevents material blockage
Semi Automatic 12 Belt Combination Weigher For Vegetable Carrot Cucumber Chili 5 Semi Automatic 12 Belt Combination Weigher For Vegetable Carrot Cucumber Chili 6
Custom Solutions

Our experts provide integrated weighing and packaging solutions tailored to your production line requirements to improve efficiency.

Semi Automatic 12 Belt Combination Weigher For Vegetable Carrot Cucumber Chili 7
Additional Services

OEM/ODM Service: We can customize nameplates, packaging, and labels with your brand logo.

Packing: Standard export packing with protective wrapping and wooden cases.

Shipping: Available via international express (DHL/FEDEX/UPS/TNT) or by sea from Zhongshan Port.
