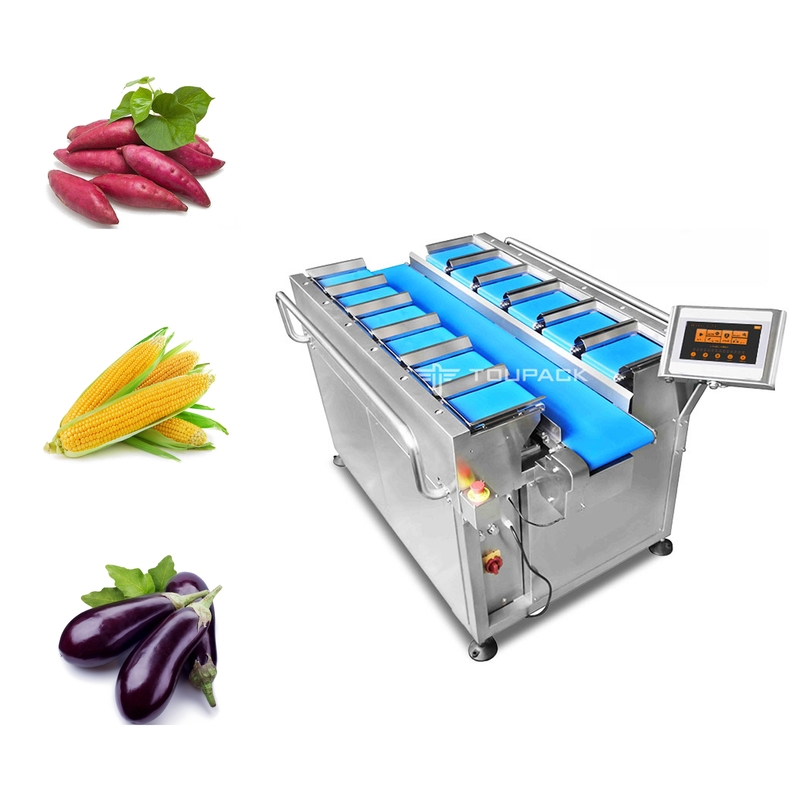

Industrial 12 Head 14 Head Belt Combination Weigher For Sweet Potato Corn Eggplant Belt Type Combination Weigher
Weighing of durian fruit pulp
The durian pulp is transferred to different hoppers for weighing by multiple belt conveyors, and the weighing results of multiple hoppers are finally combined to get the total weight of the whole box of durian. With the advantages of high weighing accuracy, fast weighing speed and suitable for many kinds of materials, the belt combination scale is widely used in food, chemical and pharmaceutical industries.
——Carrot Weighing
——Cucumber Weighing
——Chili Weighing
It is widely used in food processing enterprises, supermarkets and fresh food markets for quantitative packaging of irregularly shaped wet sticky and fragile items in bags and boxes, such as quantitative packaging of fresh or frozen meat, fish, shrimp and seafood, vegetables and fruits, etc.
Frozen Dried Durian Combination Weigher Specifications
|
Model |
TY-ZHZ121P160-01-13 |
|
Max. Weighing (one belt) |
20-5,000g |
|
Accuracy |
x (0.5) |
|
Min. Scale Interval |
0.1g |
|
Max. Speed |
40 BPM |
|
Size of weighing table |
250*160mm |
|
Control System |
PLC |
|
HMI |
10” color touch screen |
|
Power Supply |
AC220V ±10% 50HZ/60HZ, 1KW |
|
Packing Dimension |
1,900mm(L)*1,240mm(W)*1,207(H)mm |
|
Machine weight |
280kg |
|
Package weight |
340kg |
Frozen Dried Durian Combination Weigher Product Features
Solution:
According to your production line requirements, our experts will provide you with an integrated weighing and packaging solution to help you improve production efficiency.
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as nameplate, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
-Wrap the protective
-Packen in wooden cases
Shipping:
- International express such as DHL / FEDEX / UPS / TNT, etc
- By sea
Standard export port:
Zhongshan Port
