Pear Apple Weighing Fruit Combination Scale 12 Head Hand Loading Weighing Machine

Pear Apple Weighing Fruit Combination Scale 12 Head Hand Loading Weighing Machine

Pear Apple Weighing Fruit Combination Scale

12 Head Fruit Combination Scale

Place of Origin:

China

Brand Name:

TOUPACK

Certification:

CE,ISO9001

Model Number:

TY-ZHZ121P160-01-13

Contact Us
Request A Quote
Product Details
Material:
SUS304 Stainless Steel
Numbers Of Scales:
12
Customized Support:
OEM,ODM
Belt Material:
Food Grade
Parameter Adjustment:
Auto Learning/Manual Setting
Display Type:
Smart Touch Screen
Weighing Material:
Fruit,Sea Food,Vegetables,Agricultural Products
After-sales Hours:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Wooden case
Delivery Time
15 works day
Payment Terms
L/C, T/T
Product Description
Pear Apple Weighing Fruit Combination Scale 12 Head Hand Loading Weighing Machine
Product Specifications
Material SUS304 Stainless Steel
Numbers of Scales 12
Customized support OEM, ODM
Belt material Food grade
Parameter Adjustment Auto learning/Manual setting
Display Type Smart touch screen
Weighing Material Fruit, Sea Food, Vegetables, Agricultural Products
After-sales service 1 year
Product Overview

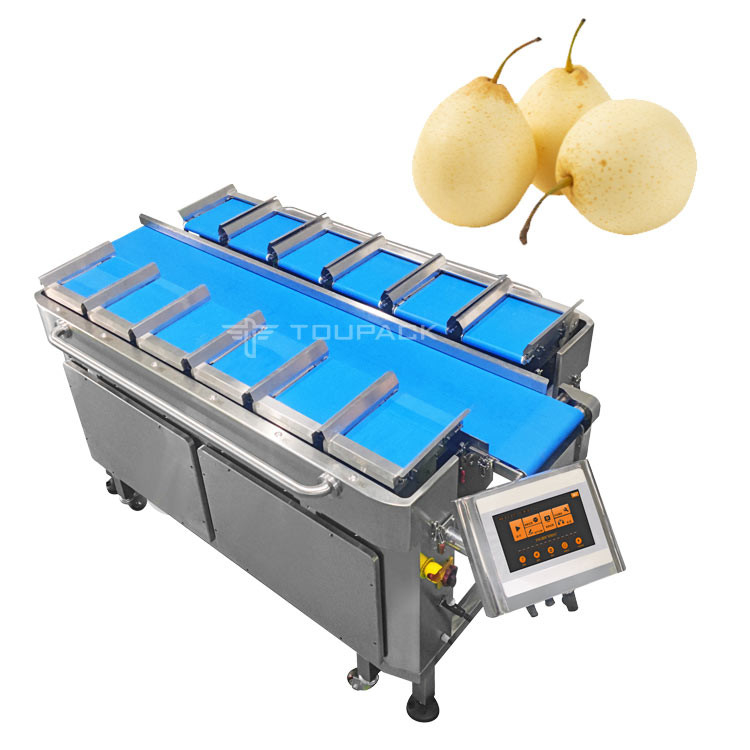

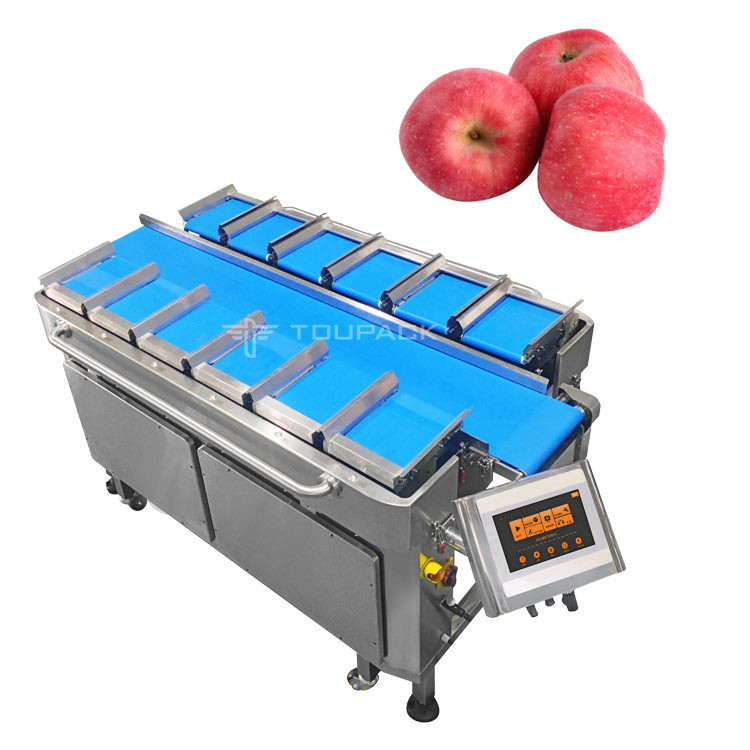

The TOUPACK Pear Apple Weighing Fruit Combination Scale is a 12-head hand-loading weighing machine designed for efficient and accurate weighing of various products including fruits, vegetables, and seafood.

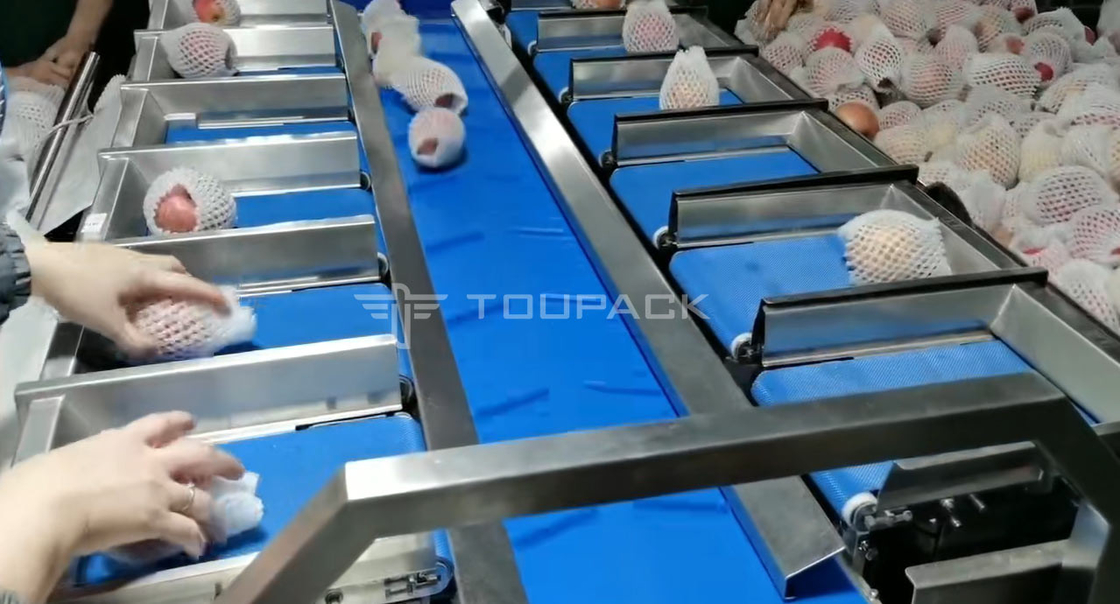

Apple Weighing Process

Apples are transferred to different hoppers for weighing by multiple belt conveyors. The weighing results from multiple hoppers are combined to get the total weight of the whole box. This system offers high weighing accuracy, fast operation, and versatility for various materials.

  • Manual placement of apples on the weighing table
  • Automatic weighing on 12-head combination scale
Pear Apple Weighing Fruit Combination Scale 12 Head Hand Loading Weighing Machine 0 Pear Apple Weighing Fruit Combination Scale 12 Head Hand Loading Weighing Machine 1

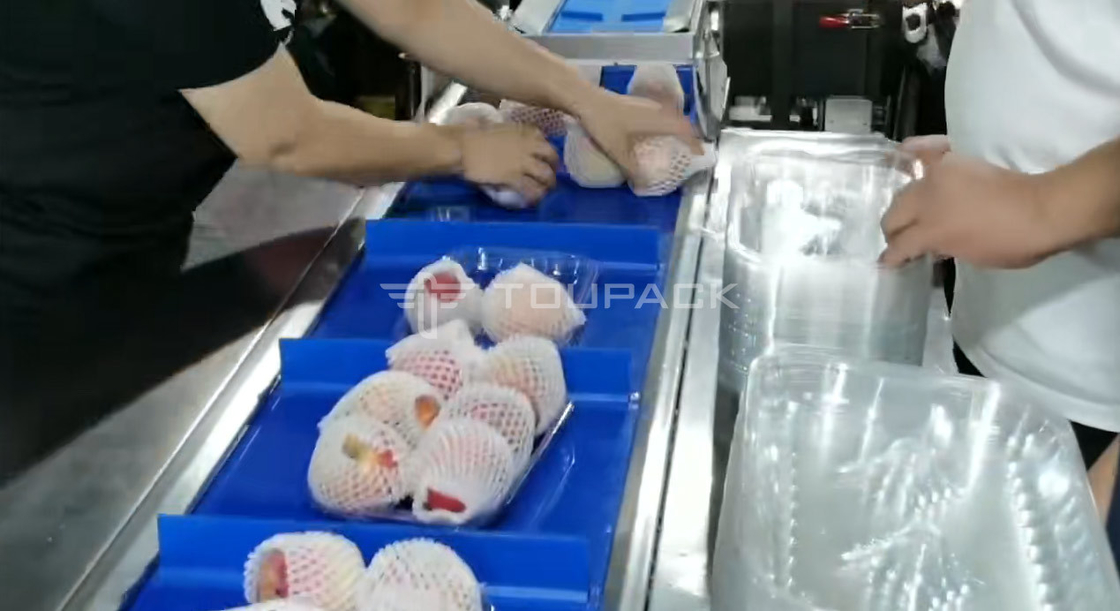

Optional Configuration

Cartoning conveyor lines can be configured as required to complete your packaging solution.

Pear Apple Weighing Fruit Combination Scale 12 Head Hand Loading Weighing Machine 2

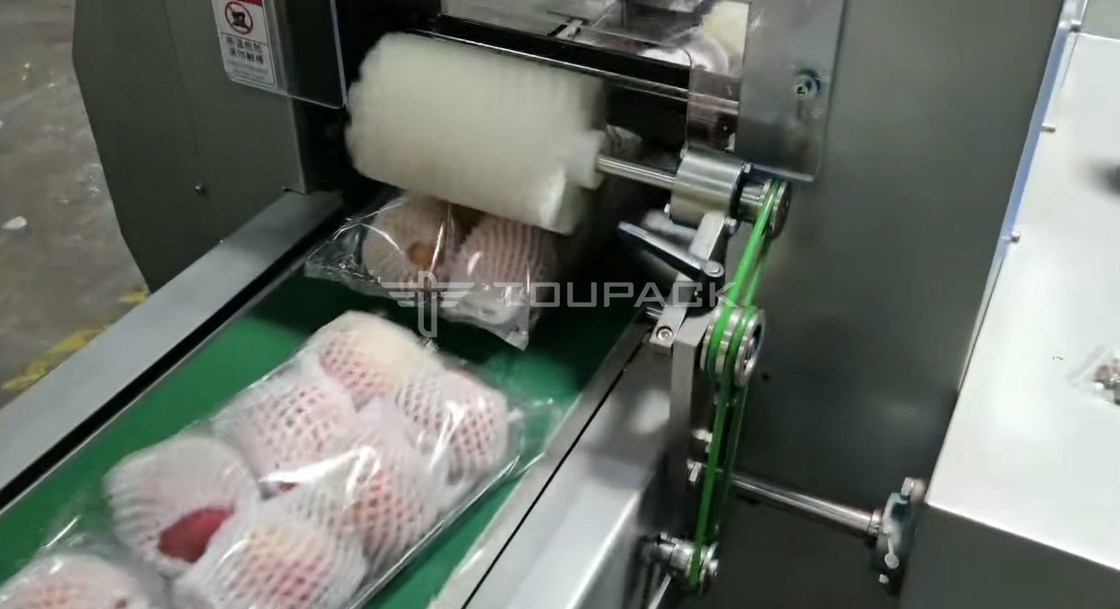

Pillow Packaging

Boxed apples are packed and sealed in a pillow packaging machine for secure transportation.

Pear Apple Weighing Fruit Combination Scale 12 Head Hand Loading Weighing Machine 3 Pear Apple Weighing Fruit Combination Scale 12 Head Hand Loading Weighing Machine 4
Technical Specifications
Model TY-ZHZ121P160-01-13
Max. Weighing (one belt) 20-5,000g
Accuracy ±0.5g
Min. Scale Interval 0.1g
Max. Speed 40 BPM
Size of weighing table 250*160mm
Control System PLC
HMI 10" color touch screen
Power Supply AC220V ±10% 50HZ/60HZ, 1KW
Packing Dimension 1,900mm(L)*1,240mm(W)*1,207(H)mm
Machine weight 280kg
Package weight 340kg
Key Features
  • Manual loading with automatic weighing - ideal for materials with poor flow characteristics
  • Optimized weigh hopper combination for accurate target weight discharge
  • High precision sensors for reliable measurements
  • Efficient asynchronous discharge prevents material blockage
Pear Apple Weighing Fruit Combination Scale 12 Head Hand Loading Weighing Machine 5 Pear Apple Weighing Fruit Combination Scale 12 Head Hand Loading Weighing Machine 6
Custom Solutions

Our experts will provide integrated weighing and packaging solutions tailored to your production line requirements to improve efficiency.

Pear Apple Weighing Fruit Combination Scale 12 Head Hand Loading Weighing Machine 7
OEM/ODM Services

We offer custom branding options including nameplates, packaging bags, labels, and more to display your brand logo.

Packing & Shipping
  • Standard export packing with protective wrapping and wooden cases
  • International shipping options: DHL, FEDEX, UPS, TNT, or by sea
  • Standard export port: Zhongshan Port
