Place of Origin:
China
Brand Name:
TOUPACK
Certification:
CE,ISO9001
Model Number:
TY-ZHZ121P160-01-13
Material | SUS304 Stainless Steel |
Numbers of Scales | 12 |
Customized support | OEM,ODM |
Belt material | Food grade |
Parameter Adjustment | Auto learning/Manual setting |
Display Type | Smart touch screen |
Weighing Material | Fruit, Sea Food, Vegetables, Agricultural Products |
After-sales hours | 1 year |

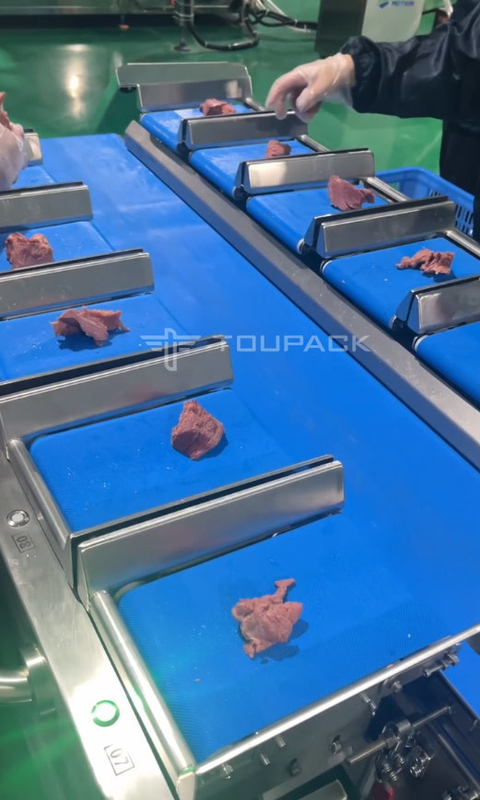

Our rotary vacuum bag packaging machine features a 12-head multihead weigher system specifically designed for beef cube packaging. The beef cubes are transferred to different hoppers via multiple belt conveyors, with the combined weighing results determining the total package weight.

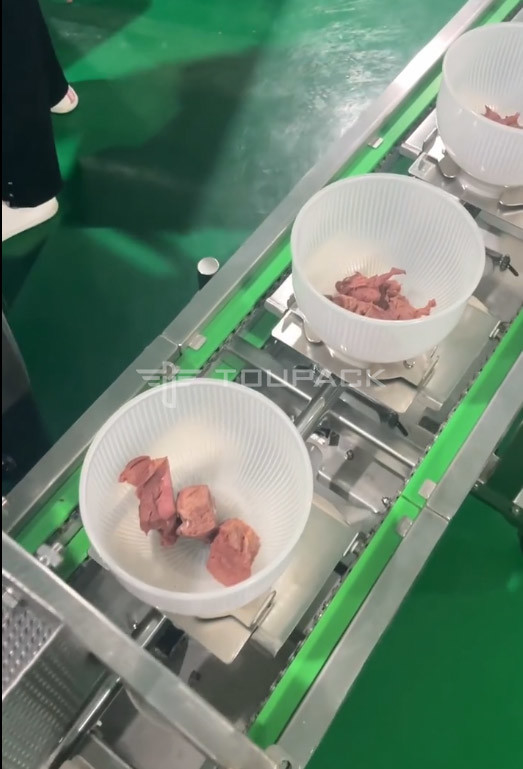

The weighed beef cubes are transported via a bowl elevator system, with bowls available in PP or stainless steel materials based on customer requirements.
The system utilizes robotic technology for complete automation of the packaging process, including bag picking, opening, filling, and final sealing.
The system includes vacuum packaging capability to ensure product freshness and extended shelf life.
Model | TY-ZHZ121P160-01-13 |
Max. Weighing (one belt) | 20-5,000g |
Accuracy | x (0.5) |
Min. Scale Interval | 0.1g |
Max. Speed | 40 BPM |
Size of weighing table | 250*160mm |
Control System | PLC |
HMI | 10" color touch screen |
Power Supply | AC220V ±10% 50HZ/60HZ, 1KW |
Packing Dimension | 1,900mm(L)*1,240mm(W)*1,207(H)mm |
Machine weight | 280kg |
Package weight | 340kg |
Our engineering team provides integrated weighing and packaging solutions tailored to your specific production line requirements.
