Dogs Cats Birds food Premade Pouch Filling Sealing Equipment Pet Food Zipper Pouch Packing Machineuid Pouch Filling Sealing Machine Oil Pouch Mini Doypacker Machine Standup bag Zipper bag

Pet food zipper pouch packing machine main features:
- Easy to operate and easy to replace the bag;
- Low maintenance cost;
- No bag prompting function;
- Self-diagnosis function of open the bag failed (The bag can be reused); In that case, the machine will not fill and seal, it will re-take the bag;
- Positioning (anti-dropping) function of hopper;
- Warning function of cartridge heater fault;
- Warning function of cylinder fault.
Pet food zipper pouch packing machine specification:
| No |
Feature |
Description |
| 1 |
Pouch material |
Multilayer composite Premade Bag e.g: PET/PE |
| 2 |
Pounch type |
3 side seal bag, stand up pouch, zipper bag, flat bottom pouch
|
| 3 |
Size range |
80mm≤W≤300mm
100mm≤L≤430mm |
| 4 |
Speed |
0-15 bags/min |
| 5 |
Sealing type |
Straight grain, pitch is1mm (Optional reticulate) |
| 6 |
Sealing width |
10mm(5--20mm can be customized) |
| 7 |
Power supply |
220V, Single-phase, 50/60HZ, 1.2KW |
| 8 |
Air pressure |
0.65Mpa |
| 9 |
Air consumption |
0.3m³/min (Standard machine, no additional function) |
| 10 |
Packaging dimension |
1860*600*1650mm(Export non-fumigation wooden case) |
Pet
food zipper pouch packing machine / premade pouch filling sealing machine

Mini Doypack Bag type

Working flow:
giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
Pet food zipper pouch packing machine applicable scope:
1. Block material: bean curd cake, fish, eggs, candy, red jujube, cereal, chocolate, biscuit, peanut, etc
2. Granular type: granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer
3. Powder type: milk powder, glucose, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc
4. Liquid type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce
5. Other bagging materials
Associated equipment with Mini Doypack Machine:

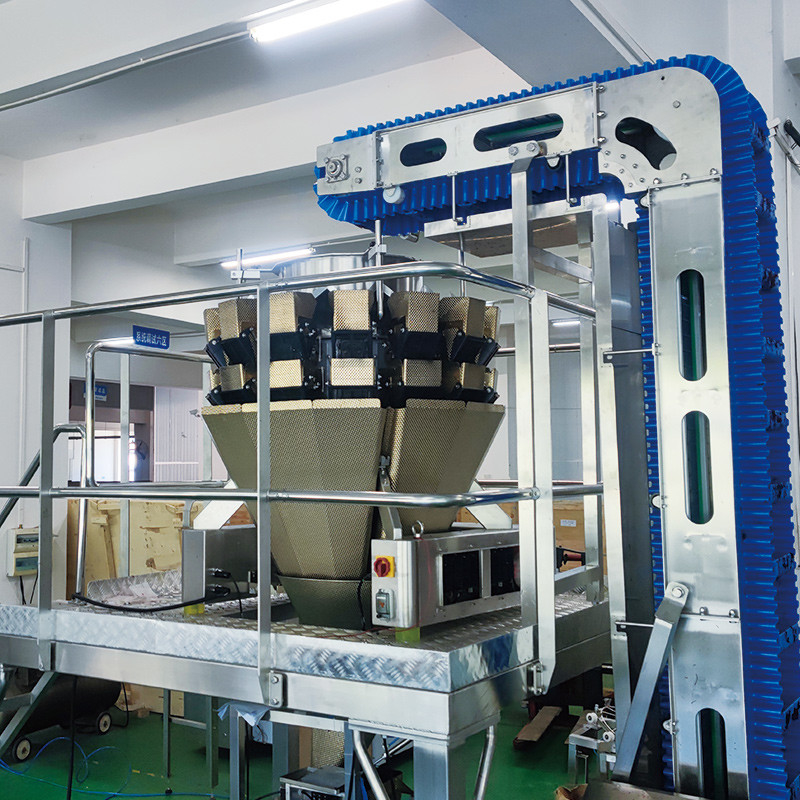

1. Elevator: inclined elevator, Z type elevator, bowl elevator, single bucket elecator, etc.

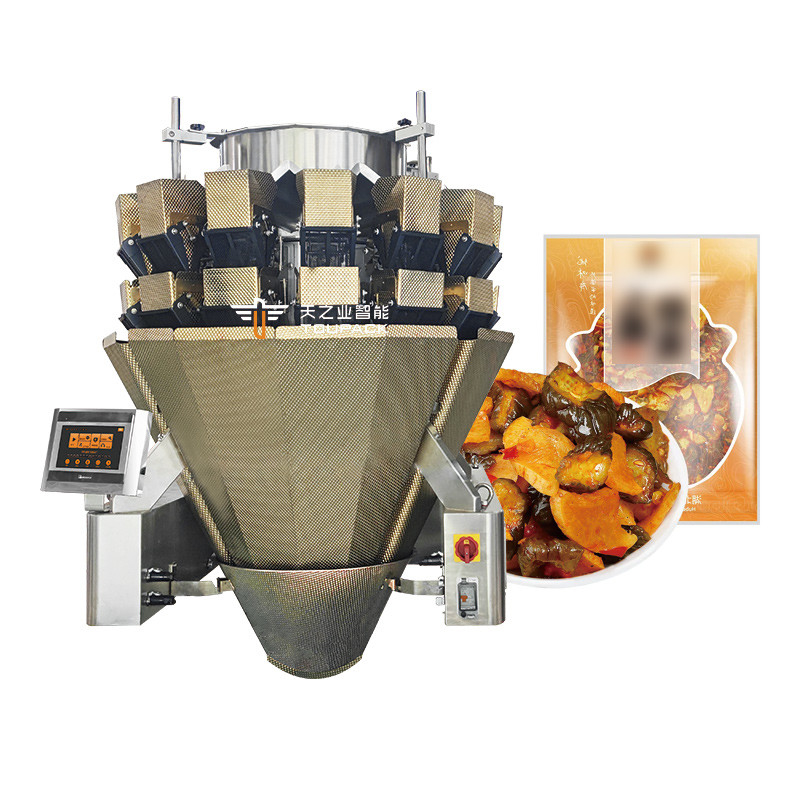

2. FiIlling machine: multihead weigher, linear weigher, auger filler, etc.
3. Working platform: adjustable platform, simple platform, etc.
4. Exit conveyor / Check weigher / metal detector / Rotable table

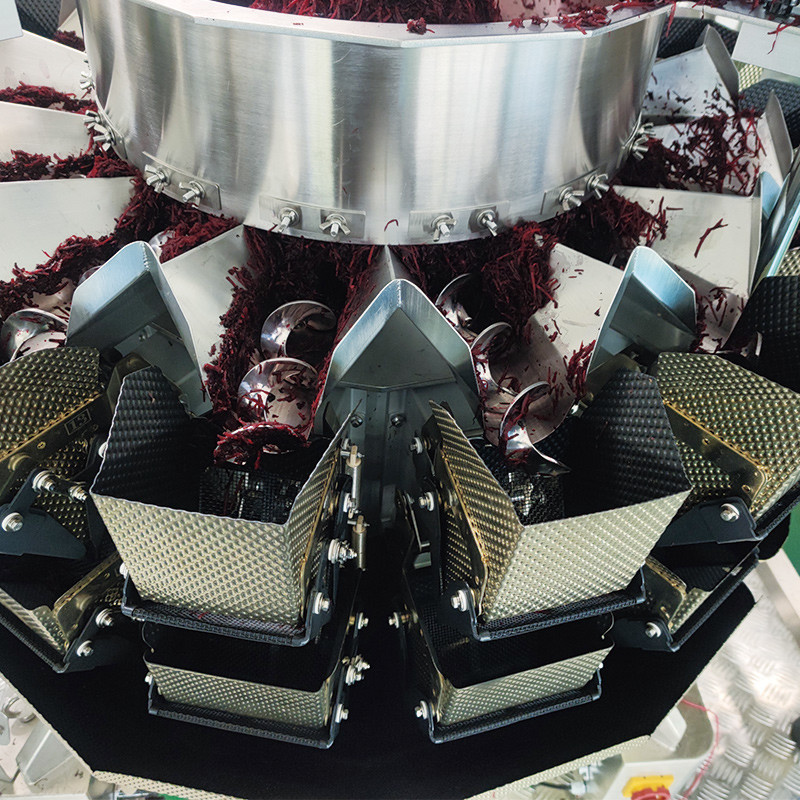

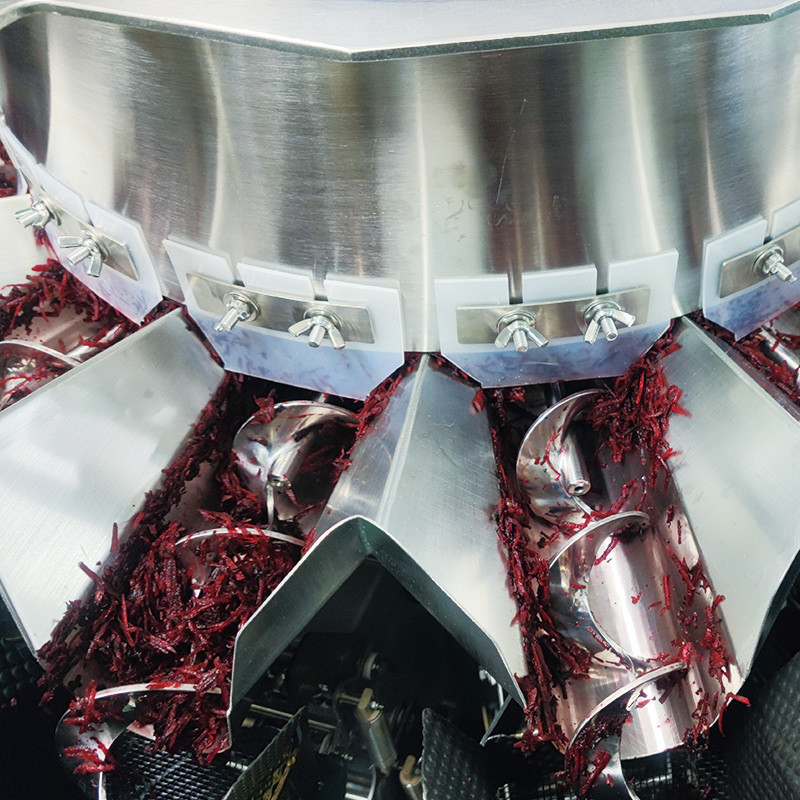

Pet food zipper pouch packing machine details:
>Why choose us:
ㆍOver 12 years weighing and packing machine design & manufacturing experience
ㆍOver 60 countries customers choices
ㆍProfessional team with passion and diligence
ㆍAll-in-one stand service
After-sale services:
1. Manual / Videos of machine installation, adjusting, maintenance are available for you.
2. If any problems happened, telecom or online face to face communication available 24 hours.
3. Engineers & technician Engineer available to serve machines for your countries.
4. The machine will have 1 year warranty of machine.
FAQ:
Q1: Are you a manufacturer or a trading company?
A: We are manufacturer, we have professional factory in Guangdong China
Q2. Do you sell the accessories for products?
A: Yes. We have Match the parts for our testing equipment.
Q3. How about the packing for product?
A: We takes of wooden case and it is very safe.
Q4. Do you accept customer Logo and customized?
A: we accept kinds of customized and logo of all of our products for customers.
Q5. What's your main product?
A: We are specialized in multi-head weigher, conveyor machine, packing machine, Metal detector, Check weigher and other related electronic products and machine
Q6. How about your after-sales policy?
A: Customer First. We have our own R&D team and we can offer tech-support. All of our products normal warranty is 12months.
