0.1KW Belt Width 95mm Check Weigher For Medicine Bottle

0.1KW Belt Width 95mm Check Weigher For Medicine Bottle
0.1KW Belt Width 95mm Check Weigher For Medicine Bottle 0.1KW Belt Width 95mm Check Weigher For Medicine Bottle 0.1KW Belt Width 95mm Check Weigher For Medicine Bottle 0.1KW Belt Width 95mm Check Weigher For Medicine Bottle 0.1KW Belt Width 95mm Check Weigher For Medicine Bottle

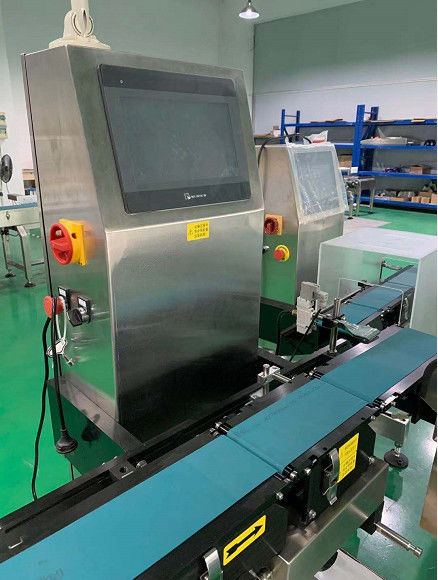

Large Image :  0.1KW Belt Width 95mm Check Weigher For Medicine Bottle

Product Details:
Place of Origin: CHINA
Brand Name: TOUPACK
Certification: CE
Model Number: TY-CW90
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 6500-7000 per set
Packaging Details: Wooden case packaging, 2400L*1000W*1530H(mm), gross weight 200kg
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 1 set per 30 working days

0.1KW Belt Width 95mm Check Weigher For Medicine Bottle

Description
Main Frame: SUS304 Accuracy: ±0.05g~±0.15g
Max Speed: 200 P/M Belt Width: 95mm
Belt Length: 200mm Power Supply: AC 220V ± 10% / 1P / 0.1KW
Control System: High Speed A / D Sampling Controller Belt Height: 800±50mm
Optional Rejector: Air Blower
High Light:

Belt Width 95mm Check Weigher

,

0.1KW Check Weigher

,

Medicine Bottle Checkweigher

High precision check weigher with belt width 95mm for chencking medicine bottle

CW90 Check Weigher Application:
It is used to check if the finished products are within the preset target weight and reject the non-standard products by automatic
checking device.
Main function & Features:

1. Automatic zero tracking.
2. Flexible adjustment, applicable to products of multi specification range.
3. VFD adopted to adjust speed continuously with large regulating range.
4. Resolution up to 16 bit weight measurement with 0.05% high accuracy.
5. The fast measurement time can be selected between 20ms (50HZ) or 33ms (60HZ) to adapt to different power frequency.
6. More powerful storage and analysis capabilities. 99 product-sorting parameters can be preset and called out. Statistical
analysis by easy query mode for up to 1,500 production records.
7. Equipped with high precision HBM digital load cell for fast and accurate sampling.

Specification
item
value
Warranty
1 Year
Type
Other
Applicable Industries
Manufacturing Plant, Food & Beverage Factory
After Warranty Service
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location
none
Showroom Location
none
Video outgoing-inspection
Not Available
Machinery Test Report
Not Available
Marketing Type
New Product 2020
Warranty of core components
1 Year
Core Components
PLC
Condition
New
Application
Food, Beverage, Commodity, MEDICAL, Chemical
Packaging Type
CANS, Bottles, Barrel, Stand-up Pouch, Bags, Pouch
Packaging Material
wood
Automatic Grade
Automatic
Driven Type
Electric
Voltage
AC220V ±10%/1P
Power
0.1KW
Place of Origin
China

Guangdong
Brand Name
TOUPACK
Weight

Dimension(L*W*H)

Certification
CE ISO
After-sales Service Provided
Online support
Key Selling Points
Automatic
Weighing Range
200g
Weighing Accuracy
0.05g
Max Speed
200WPM



0.1KW Belt Width 95mm Check Weigher For Medicine Bottle 00.1KW Belt Width 95mm Check Weigher For Medicine Bottle 10.1KW Belt Width 95mm Check Weigher For Medicine Bottle 20.1KW Belt Width 95mm Check Weigher For Medicine Bottle 30.1KW Belt Width 95mm Check Weigher For Medicine Bottle 4
