Name: Automated Electronics X-Ray Inspection Machine For Food Industry X Ray Inspection System
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: TYA-MD3011
Price: 7,500.00 USD
Availability: InStock

Home > products > Food X Ray Inspection Systems >

Automated Electronics X-Ray Inspection Machine For Food Industry X Ray Inspection System

Automated Electronics X-Ray Inspection Machine

Food Industry X-Ray Inspection Machine

Place of Origin:

Guangdong Zhongshan China

Brand Name:

TOUPACK

Certification:

Model Number:

TYA-MD3011

Request A Quote

Product Details

Detecting Width:

240mm

Detecting Height:

170mm

Transfer Speed:

10-70m/ Min

HMI:

Germany 17 Inch Touch Screen

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Packaging Details

Pollywood case

Delivery Time

3 - 30 days after payment arranged

17 Inch Touch Screen 150W Food X Ray Inspection Systems

Get Best Price

SUS304 Food Conveyor Belt X Ray Scanner Machine

Get Best Price

IP66 100KV Food X Ray Inspection Systems Automatic X Ray Detector

Get Best Price

MIni 17 Inch HMI Automated Food X Ray Inspection Systems 70m / Min High Speed

Get Best Price

Contact Now

Product Description

Automated Electronics X-Ray Inspection Machine For Food Industry X Ray Inspection System

Key Attributes

Detecting Width	240mm
Detecting Height	170mm
Transfer speed	10-70m/min
HMI	Germany 17 inch touch screen

Product Overview

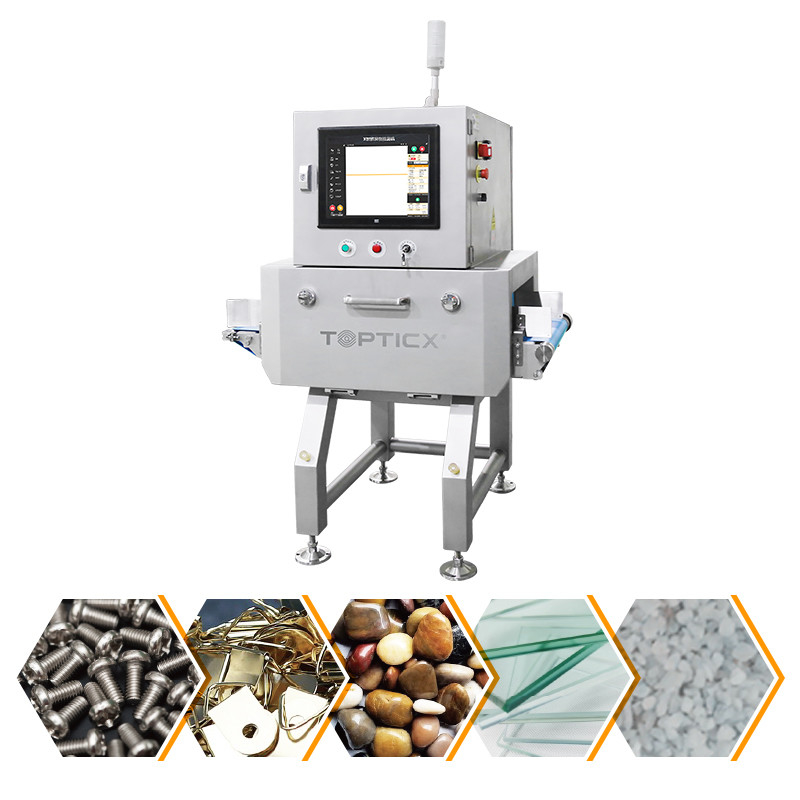

Our Food X-Ray Inspection System is designed for detecting both metallic and non-metallic contaminants in food, chemical, and pharmaceutical products. It effectively identifies foreign materials including glass, ceramics, stones, bones, hard rubber, and plastic.

Key Features

Advanced image processing with up to 8 grades for optimal product adaptability and stability
Capable of shielding edge detection for various packaging types including desiccant, canned food, and aluminum clamp for ham sausage
Compliance with US FDA and European CE standards for X-ray leakage
Built-in air conditioning and IP66 rating for reliable operation
Easy-to-dismantle design for thorough cleaning and maintenance

Technical Specifications

Model	TTX-2417K100	TTX-4017K100	TTX-5026K100	TTX-6035K100
X-ray Light Source	150W/100KV	210W/100KV	350W/100KV
Detecting Width	240mm	400mm	500mm	600mm
Detecting Height	170mm	170mm	260mm	350mm
Accuracy	SUS ball Φ0.3mm, SUS wire Φ0.2*2mm
Transfer speed	10-70m/min
HMI	Germany 17 inch touch screen
Connectivity	LAN Port, USB Port
Working environment	Temperature: -10℃~40℃ (Air conditioned cooling) Humidity: 30%~90%, No dewing (Anti-humidity device)
X-ray Leakage	1 millisievert/hour
Protection method	Lead-free protective curtain (easy disassembly)
Alarming method	Acousto-optic alarming
Power Supply	AC220V ± 10% 50Hz(60Hz) 1.5kVA Max
Body Material	SUS304

Product Images
